LIBERTY

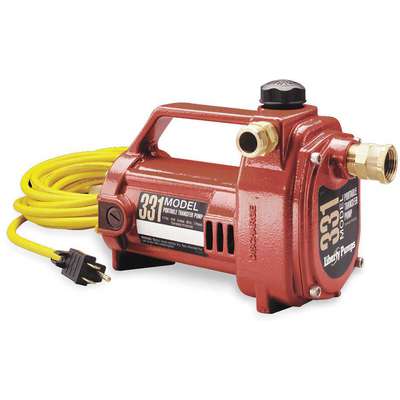

1/2 HP Utility Pump, 115 Voltage, 3/4" GHT Inlet, 3/4" GHT Outlet

Hover over image to magnify
Pump,Centrifugal,1/2hp
PI_Asset_1369785
Pump,Centrifugal,1/2hp
PI_Asset_1369785

#914855-1 | Pkg Qty: 1

$434.78 pkg | $434.78 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
CSA
Impeller Material
Thermoplastic
Amps
8.0 A
Impeller Type
Open
Bearing Type
Ball
Inlet
3/4 in. GHT
Best Efficiency GPM @ Head
10 gpm @ 60 ft.
Inlet Pressure
60 psi
Best Efficiency Range GPM @ Head
9 to 13 gpm @ 48 to 71 ft.
Item
Utility Pump
Brand
LIBERTY
Length
9-3/4 in.
Cord
20 ft.
Maximum Case Pressure
100 psi
Duty
Intermittent
Maximum Diameter Solids
1/8 in.
GPH of Water @ 10 PSI
1091
Maximum Head
105 ft.
GPH of Water @ 15 PSI
936
Maximum Liquid Temperature
135° F
GPH of Water @ 20 PSI
793
Maximum Pressure
40 psi
GPH of Water @ 25 PSI
654
Maximum Specific Gravity
1
GPH of Water @ 30 PSI
504
Mfr. Part Number
331
GPH of Water @ 35 PSI
342
Mfr. Warranty Length
2 yr.
GPH of Water @ 40 PSI
180
Motor Enclosure
Nema Type 3
GPH of Water @ 5 PSI
1222
Motor Type
AC/DC Brush
GPM of Water @ 1 Ft. of Head
24
Outlet
3/4 in. GHT
GPM of Water @ 10 Ft. of Head
22
Package Quantity
1
GPM of Water @ 15 Ft. of Head
21
Phase
1
GPM of Water @ 20 Ft. of Head
19
RPM
7500
GPM of Water @ 25 Ft. of Head
18
Screw Material
300 Stainless Steel
GPM of Water @ 30 Ft. of Head
17
Seal Application
Nonflammable and Nonabrasive Liquids Compatible with Seal Component Materials
GPM of Water @ 35 Ft. of Head
16
Seal Material
Carbon/Ceramic Buna N
GPM of Water @ 40 Ft. of Head
15
Seal Type
Mechanical Cartridge
GPM of Water @ 5 Ft. of Head
23
Service Factor
1
GPM of Water @ 50 Ft. of Head
13
Shaft Material
300 Stainless Steel
GPM of Water @ 60 Ft. of Head
11
Shipping Weight
11.65 lb.
GPM of Water @ 70 Ft. of Head
8
Suction Lift
15 ft.
GPM of Water @ 80 Ft. of Head
6-1/2
Type
Self-Priming
GPM of Water @ 90 Ft. of Head
4
Voltage
115
Height
7 in.
Volute Material
Cast Aluminum
Horsepower
1/2
Wetted Materials
Thermoplastic, Cast Aluminum, Brass, Stainless Steel
Housing Material
Cast Aluminum
Width
4-1/2 in.
Hz
60
General
Application
Water Transfer
Flow Rate @ 90 ft of Head (Maximum)
3.83 gpm
Best Efficiency Flow
10 gpm
For Use With
Water Transfer
Best Efficiency Head
65 ft
For Use With Potable Systems
No
Compatible Discharge Pipe Size
3/4 in
Impeller Design
Open
Compatible Intake Pipe Size
3/4 in
Includes
3/4 in OD Brass Garden Hose Connectors and Plastic Suction Screen
Flow Rate @ 1 ft of Head (Maximum)
23.33 gpm
Intake Type
GHT
Flow Rate @ 10 ft of Head (Maximum)
22 gpm
Intake and Discharge Size
3/4 in , 3/4 in
Flow Rate @ 100 ft of Head (Maximum)
0 gpm
Maximum Feet of Head
100 ft
Flow Rate @ 15 ft of Head (Maximum)
21 gpm
NPSHr
60 psi
Flow Rate @ 20 ft of Head (Maximum)
20 gpm
Nameplate Voltage
115V AC
Flow Rate @ 30 ft of Head (Maximum)
17 gpm
Priming
Manual
Flow Rate @ 40 ft of Head (Maximum)
15 gpm
Pump Housing Material
Aluminum
Flow Rate @ 5 ft of Head (Maximum)
23 gpm
Shut Off Pressure (Maximum)
40 psi
Flow Rate @ 50 ft of Head (Maximum)
13 gpm
Solid Diameter (Maximum)
0.13 in
Flow Rate @ 60 ft of Head (Maximum)
10.33 gpm
Specific Gravity (Maximum)
1
Flow Rate @ 70 ft of Head (Maximum)
8.41 gpm
Suction Lift (Maximum)
15 ft
Flow Rate @ 80 ft of Head (Maximum)
6.33 gpm
Wetted Material
Brass, Cast Aluminum, Stainless Steel, Thermoplastic

Product Description

Portable Liquid Transfer Pump

  • Mechanical carbon ceramic seal
  • Easy-to-use pump provides high head and high pressures to move water quickly. Features convenient On/Off switch for control at the pump. Large hand-tightened prime plug has internal funnel design for fast and easy priming. Stainless steel retention plate extends seal life by retaining water on the shaft seal during intermittent run-dry conditions. Plastic open-type impeller. Includes 3/4" O.D. brass garden hose connectors and plastic suction screen for hose end.
