Igus Cable and Hose Carrier: Open, 1 Channels, 1.8" Cavity H, 4.5" Cavity W, 12" Lg

Hover over image to magnify
Cable Carrier,Med,Open,OW5.
Cable Carrier,Med,Open,OW5.

#914779-1 | Pkg Qty: 1

$60.42 pkg | $60.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bend Radius
7.87 in. / 200mm
Loop Height
18.31 in./465.1mm
Brand
IGUS
Loop Length
34.45 in./875.0mm
Cavity Height
1.77 in./45.0mm
Mfr. Part Number
350-115-200-0-1
Cavity Width
4.53 in.
Number of Links
5
Color Family
Black
Outside Width
135 mm
Height
64 mm
Package Quantity
1
Item
Cable and Hose Carrier
Shipping Weight
1.5 lb.
Length
1 ft.
Style
Open
Link to Link Pitch
2.64 in./67.0mm
Type
Medium
General
Accessory Width
5.3 in
Includes
No Bracket Included
Carrier Design
Open
Max. Cable Dia.
1.7 in
Carrier Links Material
Igumid G
Max. Operating Temperature
248 °F
Crossbar Material
Igumid TE
Min. Operating Temperature
-40 °F
Crossbar Opening Design
Opens Outside
Mounting Bracket Design
Pivoting
Crossbar Style
Hinged Snap-On
Mounting Bracket Type
Fixed End, Moving End
Features
Dirt-Repellent
Mounting Brackets Included
Without Mounting Brackets
Frame Stay
Cross Bar
Number of Channels
1

Product Description

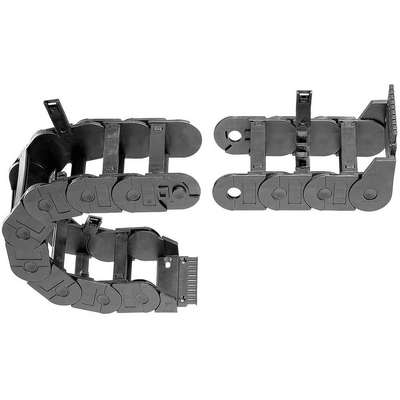

These cable and hose carriers have hinged snap-on crossbars that open for access at any point. This allows cable and hose to lay in the carrier cavity, so they don't need to be pulled through the whole length of the carrier. The carriers have an open construction, which promotes air flow to prevent heat buildup, and they're made up of molded links that snap together to create customized lengths. They're ideal for systems that need to be extended or when replacing cable or hose with terminated ends. Cable and hose carriers support and protect moving cable and hose in general purpose applications.

Item Barcode
9147791
Cable Carrier,Med,Open,OW5.
 NameItemDescription
Grainger DropshipGrainger Dropship6KGN2Cable Carrier,Med,
UNSPSC CODESUNSPSC CODES24101707
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Cable Carrier,Med,
