OWENS CORNING

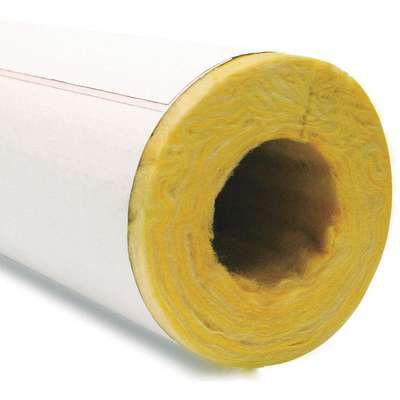

Owens Corning 1" Thick, Hinged with Self Sealing Lap Fiberglass Pipe Insulation, 3 ft. Insulation Length

Hover over image to magnify
Pipe Insulation,1-59/64 In. x
Pipe Insulation,1-59/64 In. x

#914760-6 | Pkg Qty: 1

$17.07 pkg | $17.07 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
OWENS CORNING
Length
3 ft.
Color Family
Tan
Material of Construction
Fiberglass
Fits Pipe Sizes
1-1/2 in.
Mfr. Part Number
722596
Insulation Color
Tan
Nominal Inside Diameter
1-59/64 in.
Insulation Material
Fiberglass
Package Quantity
1
Insulation Type
Hinged with Self Sealing Lap
Shipping Weight
.94 lb.
Item
Pipe Insulation
Temperature Range (Deg. F)
Up to 1000 deg. F
Jacket Color
White
Wall Thickness
1 in.
General
Approx. K Value
0.16
Insulation Length
3 ft
Approx. R Value
6.4
Insulation Nominal I.D.
1 59/64 in
Green Certification/Other Recognition
GREENGUARD® Certified
Insulation Temp. Range
0 °F to 1000 °F
Green Environmental
Total VOC Emissions ≤ 0.5 mg/m³ and Formaldehyde Emissions ≤ 0.05 ppm
Iron Pipe Nominal Size
1-1/2"
Includes
Pressure Sensitive Adhesive System
Standards
UL 723, ASTM E84 or CAN/ULC S-102-M, GREENGUARD, ASTM C 547; ASTM C 1136, Types 1-IV; ASTM C 795, MIL-I-22344D, Nuclear Regulatory Commission Guide 1.36, Non-Metallic Thermal Insulation; MIL-I-24244C (Ships); U.S. Coast Guard Approval No. 164.009; CAN/CGSB-51.9 - Type I, Class 2; New York City MEA No. 344-83; NFPA 90A; ASTM C411; ASTM C302; ASTM E96 (Procedure A)
Insulation Approx. K Value
0.16
Type - Pipe Insulation
Hinged with Self Sealing Lap
Insulation Approx. R Value
6.4
Wall Thickness - Insulation
1 in

Product Description

Features a cleanable, encapsulated paper jacket that doesn't support mildew or mold growth. Moisture won't penetrate the jacket during intermittent, short duration precipitation exposure during installation (with properly sealed joints per installation guidelines). SSL® Max closure system provides a tight, reliable seal without the need for glue or staples. Certified by SCS Global Services to contain a minimum of 53% recycled glass content, 31% pre-consumer and 22% post-consumer.

Documents

Item Barcode
9147606
Pipe Insulation,1-59/64 In. x
