HUBBELL WIRING DEVICE-KELLEMS

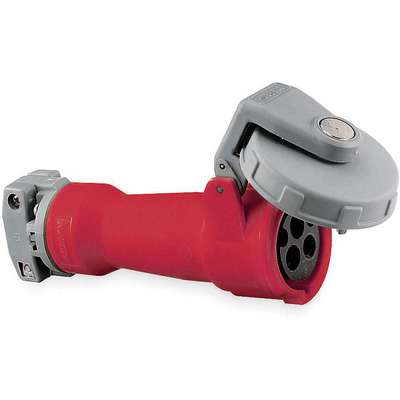

Hubbell Wiring Device-Kellems 30 Amp, 3-Phase Zytel 801 Nylon Watertight Pin and Sleeve Connector, Red
Hover over image to magnify
#914759-8 | Pkg Qty: 1
$498.69 pkg | $498.69 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Wire Size
8 AWG
Amps
30 A
Mfr. Part Number
HBL430C7W
Body Material
Zytel 801 Nylon
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
12 AWG
Cap Type
Spring-Loaded Cap
NEMA Enclosure Rating
4X
Color Family
Red
Number of Poles
3
Compatible With
HBL Heavy Duty
Number of Wires
4
Connection Orientation
Straight
Outside Diameter
3.74 in.
Current Rating
30 A
Overall Length
8.69 in.
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Package Quantity
1
For Maximum Cable Diameter
1.25 in.
Phase
Three
For Minimum Cable Diameter
0.375 in.
Pin & Sleeve Standards
IEC 60309
Grounding
Grounded
Power Indicating Light
No
Grounding Style
IEC
Reverse Service
No
Horsepower
15 hp
Shipping Weight
1.8 lb.
Housing Color
Red
Shrouded
Yes
Housing Material
PBT
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Housing Material Grade
Zytel 801
Switch Rated
No
Housing Material Type
Non-Metallic
Type
Female Connector Body
IP Rating
IP68, IP69K
UL 94 Flammability Rating
V-0
Item
Watertight Pin and Sleeve Connector
Voltage
480VAC
Material of Construction
Nonmetallic, Watertight and Abuse Resistant
Voltage Rating
480V AC
Maximum Operating Temperature
75 °C
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
30
Phase - Electrical
3
Features
Abuse Resistant
Voltage - Plugs and Receptacles
480V AC
HP
7 1/2 hp
Product Description
IEC Nonmetallic Watertight Pin and Sleeve Devices
- Designed and manufactured to meet international standards IEC 60309-1 and 60309-2. Feature a nonconductive nylon housing and OSHA-compliant lockout hole in the plug shroud to provide additional safety. The all-nonmetallic housing withstands heavy-duty industrial environments. Devices are color-coded for each specific voltage. Pin configurations are singly rated to prevent accidental mismating.
Expertly Selected Product Pairings
Item Barcode
Connector Body,3 P,4 W
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5Z942 | Connector Body,3 P,4 W |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector Body,3 P,4 W |
