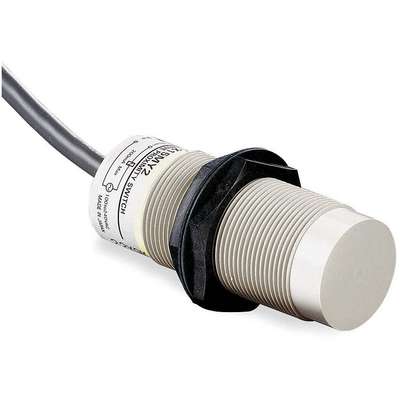

10 Hz Capacitive Cylindrical Proximity Sensor with Max. Detecting Distance 15.0mm

10 Hz Capacitive Cylindrical Proximity Sensor with Max. Detecting Distance 15.0mm

#914748 | Pkg Qty: 1

$220.00 pkg | $220.00 ea
Item Number 914748
Scanner Description Proximity Sensor,Capacitive,
Inventory Status Drop Ship Item
Weight 0.35 lb
Brand OMRON

Technical Specifications

Basic Material
Plastic
Operating Temp Range
14° to 131°F
Basic Proximity Sensor Case Material
Plastic
Output Mode
NC
Brand
OMRON
Pack Quantity
1
Case
Plastic
Power Requirement
90 to 250VAC
Case Material
Plastic
Proximity Sensing Method
Capacitive
Circuit Type
2 Wire
Proximity Sensor Diameter
30.0mm
Connector Type
2m Cable
Proximity Sensor Electrical Connection
2m Cable
Description/Special Features
Red Detection Indication, Surge Suppressor
Proximity Sensor Operating Frequency
10 Hz
Detecting Distance
15mm
Proximity Sensor Output Circuit Type
2 Wire
Diameter
30 mm
Proximity Sensor Power Requirement
90 to 250VAC
Electrical Connection
2m Cable
Proximity Sensor Style
Cylindrical Proximity Sensor
IP Rating
66
Sensing Method
Capacitive
Includes
Instruction Manual
Sensor Type
Capacitive
Item
Cylindrical Proximity Sensor
Shield
Unshielded
Length
3.15 in.
Shielded/Unshielded
Unshielded
Max. Current Load
200mA
Special Features
Red Detection Indication, Surge Suppressor
Max. Detecting Distance
15 mm
Temp. Range (F)
14 to 131
Max. Load
200 lb.
Type
Cylindrical
Mfr. Part Number
E2K-X15MY2
Voltage Range
90-250VAC
NEMA Rating
1, 4, 12, 13
Voltage Type
AC
Operating Frequency
10 Hz
Warranty
2ACC7

Product Description

This tubular proximity sensor is engineered for use with metallic and nonmetallic targets.

Item Barcode
9147480
  Name Item Description
Grainger Dropship Grainger Dropship 3XC03 Proximity Sensor,
UNSPSC CODES UNSPSC CODES 39122230
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 Proximity Sensor,
