#914591-8 | Pkg Qty: 1
$2,009.25 pkg
| $2,009.25 ea
This item requires special shipping, additional charges may apply.
Technical Specifications
Key Specifications
Bearing Type
Ball
Rotation
CW
Brand
DAYTON
Shipping Weight
345 lb.
Item
Blower
Wheel Diameter
19-1/8 in.
Mfr. Part Number
3C107
Wheel Width
7 in.
Package Quantity
1
General
Dimension A (In.)
21 5/8 in
Dimension S (In.)
32 3/8 in
Dimension B (In.)
1 3/8 in
Dimension T (In.)
27 1/2 in
Dimension C (In.)
11 in
Dimension V (In.)
9/16 in
Dimension D (In.)
9 1/16 in
Dimension X (In.)
22 1/2 in
Dimension E (In.)
17 in
Discharge Height (In.)
11 in
Dimension F (In.)
19 3/4 in
Discharge Width (In.)
9 1/16 in
Dimension G (In.)
11 3/4 in
Housing Height (In.)
29 3/4 in
Dimension H (In.)
13 1/4 in
Housing Length (In.)
28 5/8 in
Dimension J (In.)
5 11/16 in
Housing Width (In.)
9 1/16 in
Dimension K (In.)
14 7/8 in
Inlet Dia. (In.)
11 1/4 in
Dimension L (In.)
13 3/4 in
Max. Ambient Temp. (F)
104 Degrees F
Dimension M (In.)
30 in
Max. Inlet Temp. (Deg. F)
250 Degrees F
Dimension N (In.)
7 5/8 in
Motor HP Range
7 1/2 to 15
Dimension P (In.)
11 1/4 in
Wheel Dia. (In.)
19 1/8 in
Dimension Q (In.)
11 5/8 in
Wheel Width (In.)
7 in
Dimension R (In.)
16 1/2 in

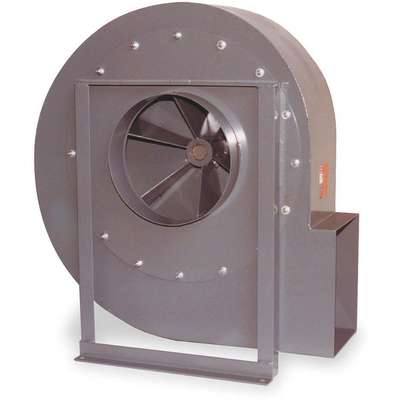

Product Description
Blower easily handles particle-laden air and nonexplosive gases. Features weatherproof drive covers. Blowers have 6 mounting points and 8 discharge positions in each rotation. CW rotation, easily converted to CCW rotation. Ductwork required to prevent motor overload.
Documents
Item Barcode
Blower,Duct,19 1/8 In
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 3C107 | Blower,Duct, 19 1/8 In |
|
UNSPSC CODES | 40101601 | |
|
VMRS (ATA) CODES | 053-006-009 | Blower,Duct, 19 1/8 In |
