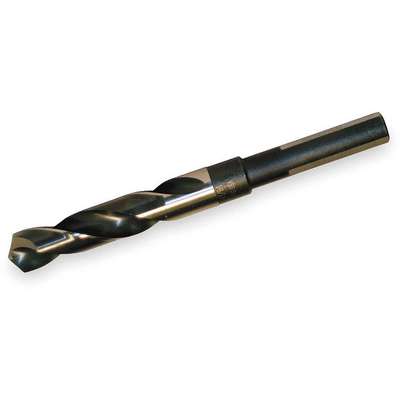

Reduced Shank Drill Bit, 47/64", High Speed Steel, Black/Gold, List Number 1877

Hover over image to magnify
Silver/Deming Drill,47/64,Hss,
Silver/Deming Drill,47/64,Hss,
Reduced Shank Drill Bit, 47/64", High Speed Steel, Black/Gold, List Number 1877 Video

#914590-8 | Pkg Qty: 1

$38.33 pkg | $38.33 ea
Item Number 914590-8
Scanner Description Silver/Deming Drill,47/64,Hss,
Inventory Status Drop Ship Item
Weight 0.42 lb
Brand CLE-LINE

Technical Specifications

Application
For Alloy And Carbon Steel, Cast Iron And Wood
Material
High Speed Steel
Brand
CLE-LINE
Maximum Drilling Depth
2-15/16 in.
Cutting Direction
Right Hand
Mfr. Part Number
C17045
Decimal Equivalent
0.7344
Number of Flutes
2
Depth x Diameter Ratio
5xD
Number of Pieces
1
Dimension Type
Fractional Inch
Overall Length
6 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Finish
Black/Gold
Point Type
Split Point
Drill Bit Material
High Speed Steel
Primary Material Application
Cast Iron, Steel
Drill Bit Point Angle
118 deg.
Series
1877
Drill Bit Size
47/64 in.
Shank Diameter
1/2 in.
Drill Point Length
0.2206 in.
Shank Length
2-1/4 in. in.
Flute Length
3-1/8 in.
Shank Type
Round with Flats
Flute Type
Spiral
Size
47/64 in.
Grade
General Purpose
Spiral Direction
Right Hand
Helix Angle
28
Standards
Not Rated
Item
Reduced Shank Drill Bit
Type
Reduced Shank
List Number
1877

Product Description

These drill bits have three flats on their shank that help prevent the bits from slipping in the drill chuck when drilling at high speeds or under heavy loads. The bits are made from high-speed steel and provide more flexibility and absorb more shock and vibration than cobalt drill bits. Also known as Silver and Deming drill bits, these reduced-shank drill bits have a 1/2" shank and a drill diameter that is greater than 1/2". They can create larger holes than standard drill bits that have a 1/2" shank.

Item Barcode
9145908
  Name Item Description
Grainger Dropship Grainger Dropship 2TGN1 Silver/ Deming Drill,
UNSPSC CODES UNSPSC CODES 20111614
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Silver/ Deming Drill,
