POWER FIRST

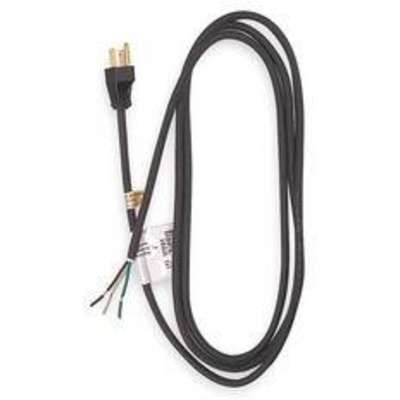

8 ft. Power Cord with SJO NEC Cord Designation, 14/3 Gauge/Conductor, and 15 Max. Amps

Hover over image to magnify
Powersupply Cord,8 Ft
PI_Asset_927556
Powersupply Cord,8 Ft
PI_Asset_927556

#914581-4 | Pkg Qty: 1

$9.78 pkg | $9.78 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
POWER FIRST
NEMA Plug Configuration
5-15P
Connection Type
Bare Leads
Nominal Outside Diameter
0.375 in.
Connector End
Bare Leads
Number of Conductors
3
Cord Length
8 ft.
Pack Quantity
1
Cord Type
SJO

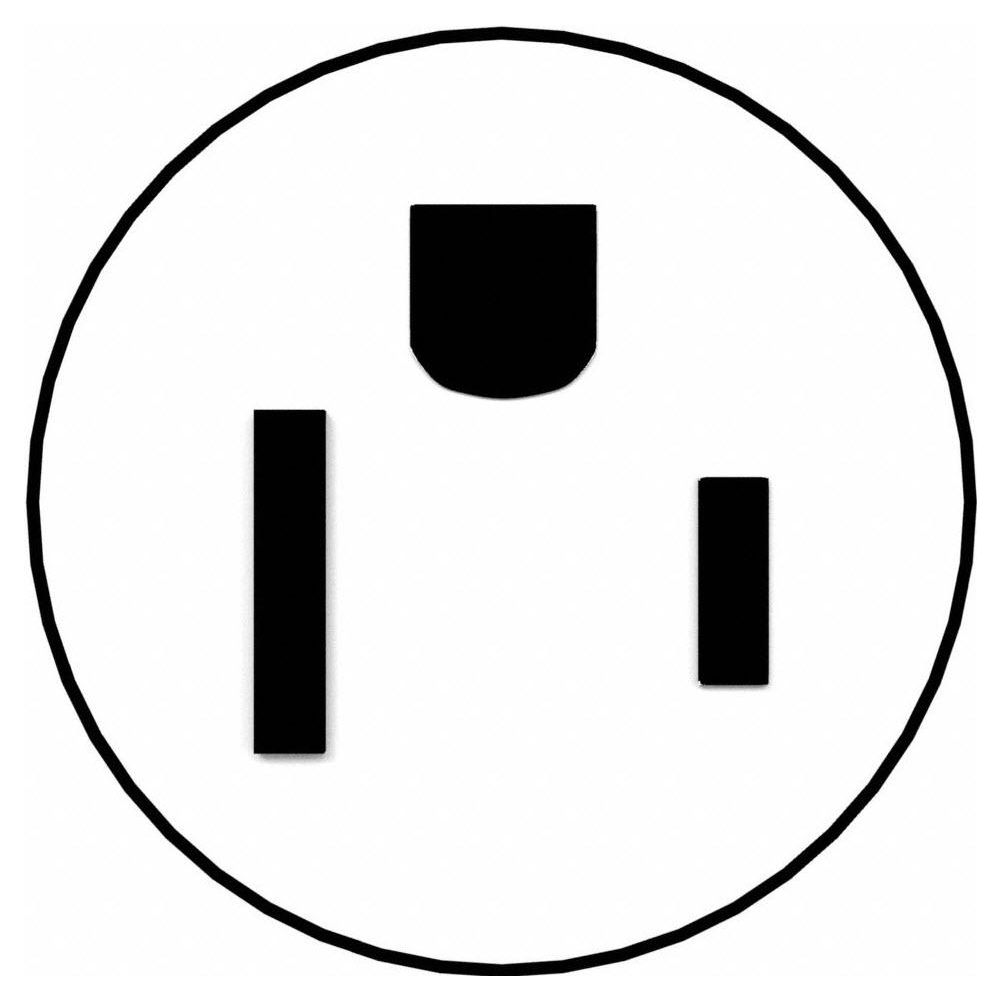

Plug Configuration
NEMA 5-15P
Gauge/Conductor
14/3
Shape
Round
Item
Power Cord
Shipping Weight
.91 lb.
Jacket Color
Black
Temperature Range
32 to 194 deg. F
Jacket Material
Rubber
Type
General Purpose
Jacket Type
Rubber
Voltage
125 VAC
Length
8 ft.
Voltage Rating
125
Maximum Amps
15
Wire Size
14 AWG
Mfr. Part Number
E3603
Wire and Cable Item
Power Cord
NEC Cord Designation
SJO
Wire/Cable Jacket Material
Rubber
General
Application
General Purpose
Jacket Material - Wire and Cable
Rubber
Connector End - Wire and Cable
Bare
Standards
UL, C-UL, RoHS
Cord Shape
Round
Trade Designation
SJO
Gauge/Conductor - Wire and Cable
14/3

Product Description

General purpose power cords are lengths of small-diameter cable (12 to 18 gauge) used to connect devices and appliances to an electrical outlet. They are often used to repair or replace a damaged cord, or to create a longer cord than the one provided with a device. They have a molded plug with straight, flat blades at one end and bare wire at the other end for wiring to the device.

Power cords, or power supply cords, are portable lengths of electrical cable used to connect devices and appliances to a power source. They are typically used on equipment that doesn't come with a power cord, such as dryers, ranges, and computer monitors. They have a molded plug at one end that connects to an electrical outlet and a socket or bare wire at the other end that is attached or wired to the device. Select a power cord to match the amperage rating of the device and plug configuration of the outlet.
