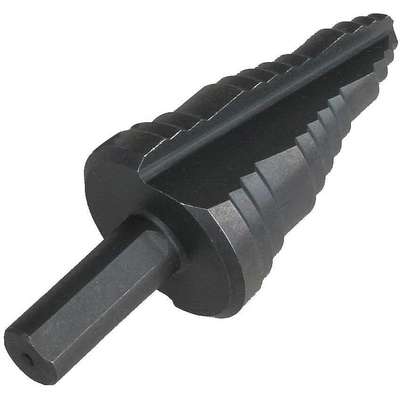

Step Drill Bit, High Speed Steel, 3 Hole Sizes, 3/8" Step Thickness, 1/2" - 1-1/8"

Hover over image to magnify
Step Drill Bit,3 Hole,1/2, 7/8,
PI_Asset_948814
Step Drill Bit,3 Hole,1/2, 7/8,
PI_Asset_948814

#914577-5 | Pkg Qty: 1

$85.94 pkg | $85.94 ea
Item Number 914577-5
Scanner Description Step Drill Bit,3 Hole,1/2, 7/8,
Inventory Status Drop Ship Item
Weight 0.27 lb
Brand WESTWARD

Technical Specifications

Brand
WESTWARD
Minimum Hole Size
1/2 in.
Drill Bit Finish
Black Oxide
Number Hole Sizes
3
Drill Bit Material
High Speed Steel
Number of Flutes
2
Drill Bit Shank Shape
3-Flat
Overall Length
2-7/8 in.
Flute Length
1-5/8 in.
Pack Quantity
1
Flute Type
Dual Flute
Primary Material Application
Steel
Includes
Plastic Tube
Series
331-39145
Increments
3/8 in.
Shank Diameter
3/8 in.
Item
Step Drill Bit
Size Range
1/2 to 1-1/8 in.
Maximum Hole Size
1-1/8 in.
Sizes Included
1/2 in., 7/8 in., 1-1/8 in.
Mfr. Part Number
6EXN6
Step Thickness
3/8 in.

Product Description

The shanks on these step drill bits have three flats that help prevent the bits from slipping in the drill chuck during drilling. These cone-shaped bits have steps of increasing diameter marked along their cutting head. As each bit is pushed into a piece of sheet metal or other thin material, each step on the bit widens the hole. The bits also have a self-starting split point that prevents the bits from moving, or walking, when starting to drill, which eliminates the need for using a center drill to create a starter hole before drilling.
