DAYTON

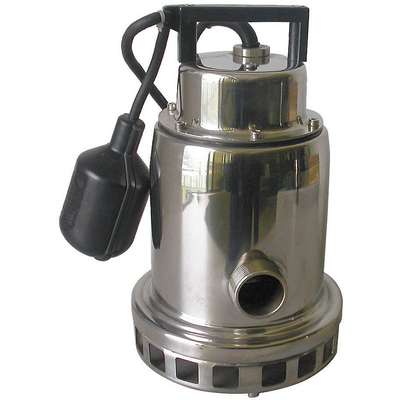

3/4 HP Submersible Sump Pump, Tether Switch Type, Stainless Steel Base Material
#914563-5Pkg Qty: 1
$548.14 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Alarm
No
Amps
6.4 A
Base Material
Stainless Steel
Brand
DAYTON
Cord Length
15 ft.
Diameter
9-1/2 in.
Discharge NPT
1-1/4 in. M
Duty
Continuous
GPM of Water @ 15 Ft. of Head
21
Gauge/Conductor
18/3
Height
12 in.
Horsepower
3/4
Housing
Stainless Steel
Housing Material
Stainless Steel
Hz
60 Hz
Impeller Material
Stainless Steel
Item
Submersible Sump Pump
Maximum Diameter Solids
3/4 in.
Maximum Head
26.2 ft.
Maximum Liquid Temperature
104°F
Maximum Temperature (Deg. F)
104
Mfr. Part Number
3YU76
NEC Cord Designation
SJTW
Package Quantity
1
Pump Body Material
Stainless Steel
Pump HP
3/4
Pump Type
Automatic
Shaft Seal Material
Buna-N
Shipping Weight
17.6 lb.
Sump Pump Item
Submersible Sump Pump
Switch Type
Tether
Top Material
Stainless Steel
Voltage
120 VAC
Alarm
No
Maximum Diameter Solids
3/4 in.
Amps
6.4 A
Maximum Head
26.2 ft.
Base Material
Stainless Steel
Maximum Liquid Temperature
104°F
Brand
DAYTON
Maximum Temperature (Deg. F)
104
Cord Length
15 ft.
Mfr. Part Number
3YU76
Diameter
9-1/2 in.
NEC Cord Designation
SJTW
Discharge NPT
1-1/4 in. M
Package Quantity
1
Duty
Continuous
Pump Body Material
Stainless Steel
GPM of Water @ 15 Ft. of Head
21
Pump HP
3/4
Gauge/Conductor
18/3
Pump Type
Automatic
Height
12 in.
Shaft Seal Material
Buna-N
Horsepower
3/4
Shipping Weight
17.6 lb.
Housing
Stainless Steel
Sump Pump Item
Submersible Sump Pump
Housing Material
Stainless Steel
Switch Type
Tether
Hz
60 Hz
Top Material
Stainless Steel
Impeller Material
Stainless Steel
Voltage
120 VAC
Item
Submersible Sump Pump
General
Bearing Type
Lubricated Ball
Body Dia.
9 1/2 in
Body Material
Stainless Steel
Discharge
1-1/4 in. MNPT
Discharge Dia.
1 1/4 in
Discharge Gender
Male
Discharge Standard
NPT
Duty Cycle
Continuous

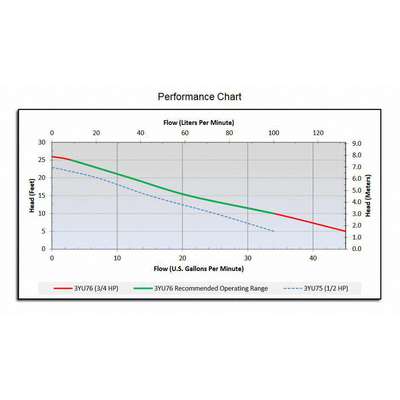

Flow Rate @ 10 Ft. of Head
34 gpm
Flow Rate @ 15 Ft. of Head
21 gpm
Flow Rate @ 20 Ft. of Head
12 gpm
Flow Rate @ 5 Ft. of Head
45 gpm
GPM of Water @ 10 Ft. of Head
34
GPM of Water @ 20 Ft. of Head
12
GPM of Water @ 25 Ft. of Head
3
GPM of Water @ 5 Ft. of Head
45
Includes
90 Degrees 1 1/4" NPT Discharge Elbow
Mechanical Seal
Buna N
Minimum Sump Pit Diameter
12 in.
Nominal Voltage
110 V AC
Off Point
8-1/2 in.
On Point
15-45/64 in.
Overall Height
12 in.
Rated Voltage
115V AC
Shaft Material
Stainless Steel
Shaft Seal
Buna N
Switch Actuation
Tether Float
Switch Electrical Connection
Piggyback
Type
Automatic
Bearing Type
Lubricated Ball
GPM of Water @ 5 Ft. of Head
45
Body Dia.
9 1/2 in
Includes
90 Degrees 1 1/4" NPT Discharge Elbow
Body Material
Stainless Steel
Mechanical Seal
Buna N
Discharge
1-1/4 in. MNPT
Minimum Sump Pit Diameter
12 in.
Discharge Dia.
1 1/4 in
Nominal Voltage
110 V AC
Discharge Gender
Male
Off Point
8-1/2 in.
Discharge Standard
NPT
On Point
15-45/64 in.
Duty Cycle
Continuous
Overall Height
12 in.
Flow Rate @ 10 Ft. of Head
34 gpm
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
21 gpm
Shaft Material
Stainless Steel
Flow Rate @ 20 Ft. of Head
12 gpm
Shaft Seal
Buna N
Flow Rate @ 5 Ft. of Head
45 gpm
Switch Actuation
Tether Float
GPM of Water @ 10 Ft. of Head
34
Switch Electrical Connection
Piggyback
GPM of Water @ 20 Ft. of Head
12
Type
Automatic
GPM of Water @ 25 Ft. of Head
3
Product Description
These 110V stainless steel submersible sump pumps come with a stainless-steel body that is more corrosion resistant than cast iron and are commonly used to drain water in sump pits. Pumps have an unpainted finish.
