DAYTON

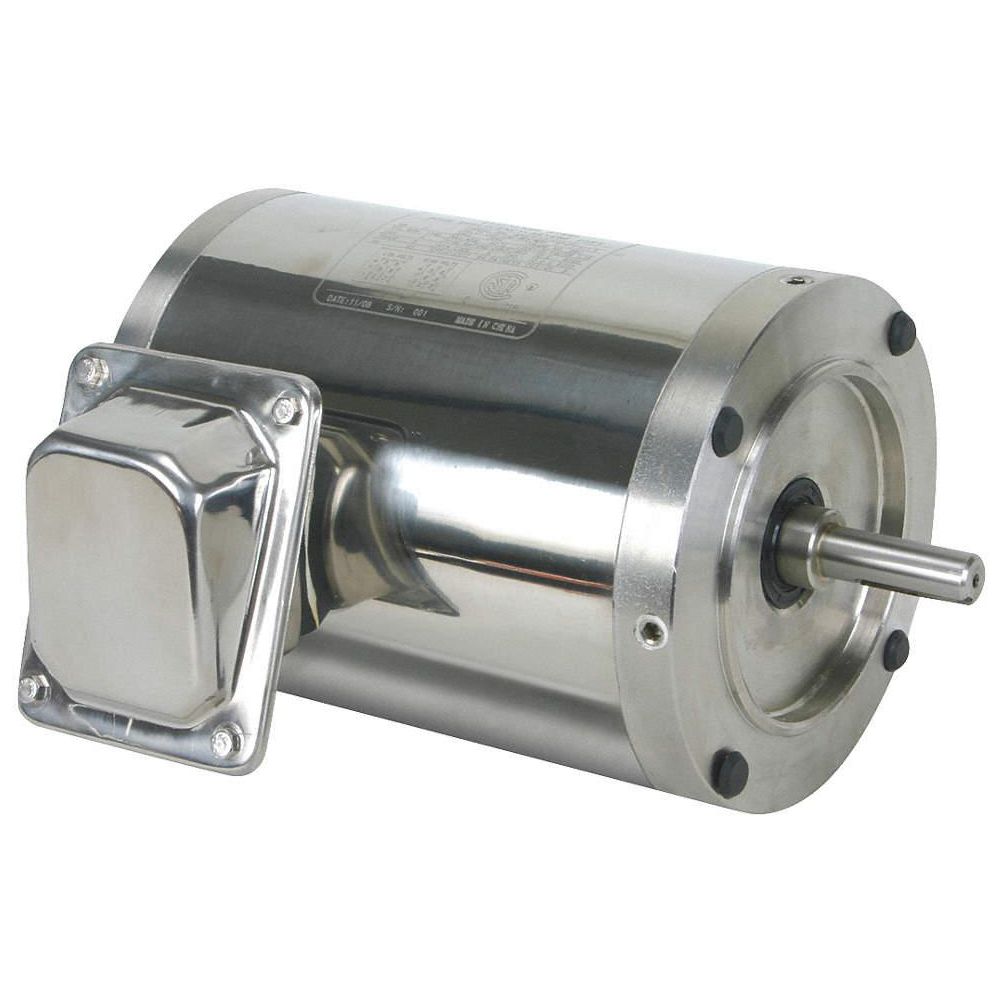

Dayton Washdown Motor, 1 HP, 3-Phase, Nameplate RPM 1,740, Voltage 230/460V AC, 56C Frame
Hover over image to magnify
#914557-6 | Pkg Qty: 1
$837.38 pkg | $837.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
3-Phase
Brand
DAYTON
Mounting
Face
Duty
Continuous
NEMA/IEC Frame
56C
Duty Cycle
Continuous
Nameplate RPM
1740
Enclosure
Totally Enclosed Nonventilated
Overall Length
11-5/16 in.
Footnotes
1
Package Quantity
1
Frame
56C
Phase
Three
Frame Material
Stainless Steel
Rotation
CW/CCW
Full Load Amps
3.0/1.50
Service Factor
1.15
Hz
60
Shaft Length
1-7/8 in.
Insulation Class
F
Shaft Material
300 Series Stainless Steel
Item
Washdown Motor
Shipping Weight
43.05 lb.
Mfr. Part Number
6WY57
Thermal Protection
None
Motor Design
3-Phase
Voltage
230/460 VAC
General
CC Number
CC082A
Motor Frame Material
Stainless Steel
Drain Plugs
4 Condensate Drains (at 3, 6, 9 and 12 O'clock) Plus 2 T-drains (1 Pre-installed Opposite Shaft End in 6 O'clock Position, the Other Loose in the Carton for Customer Installation at Low Point of Motor)
Motor Mounting Type
Face
Endshield Material
300 Series Stainless Steel
Motor Service Factor
1.15
Endshields
300 Series Stainless Steel
Motor Shaft Design
Keyed
HP
1
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Thermal Protection
None
Inverter Rated
Yes
Nominal Efficiency
85.5 %
Max. Ambient Temp.
40 °C
RPM Range
1,701-1,800
Motor Application
Washdown
Shaft Dia.
5/8 in
Motor Bearings
Ball
Standards
CE Compliant, CSA Certified, UL Component Recognized
Motor Efficiency Group
Premium Efficient
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Enclosure Design
Totally Enclosed Nonventilated
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
