STRONGARM

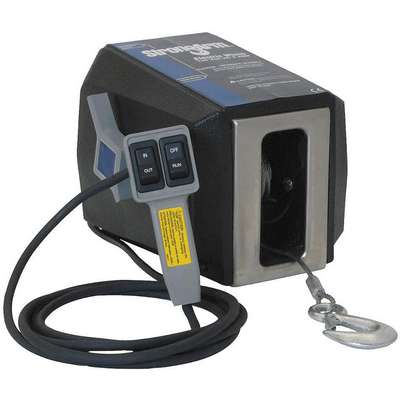

Strongarm 115VAC Pulling Electric Winch with 9.0 fpm and 1200 lb. 1st Layer Load Capacity

Hover over image to magnify
Electric Winch,1HP,115VAC
PI_Asset_1353386
Electric Winch,1HP,115VAC
PI_Asset_1353386

#914539 | Pkg Qty: 1

$489.31 pkg | $489.31 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
1st Layer Line Speed
9 fpm
Overall Height
8-1/8 in.
1st Layer Load Capacity
1200 lb.
Overall Length
10-13/16 in.
Brand
STRONGARM
Overall Width
8-3/8 in.
Clutch Type
Freespooling
Package Quantity
1
Full Load Amps
8
Rope Diameter
3/16 in.
Gear Ratio
189:1
Rope Length
20 ft.
Gear Type
Spur Gear
Rope Material
Wire
Horsepower
1
Series
Strongarm
Item
Electric Winch
Shipping Weight
23.1 lb.
Mfr. Part Number
SA5015AC
Voltage Rating
115 VAC
Mfr. Warranty Length
1 yr.
Winch Type
Pulling
General
1st Layer Line Pull
1200 lb
Included Rope Length
20 ft
1st Layer Line Speed (FPM)
16
Includes

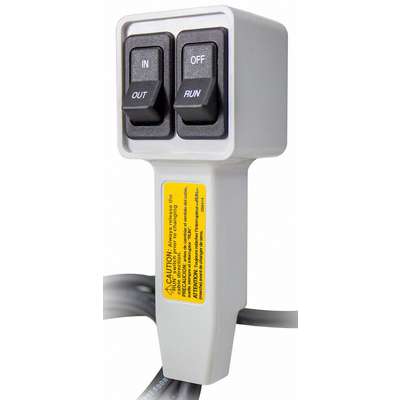

Factory Installed Remote Control and Emergency Crank Handle
Clutch Release
Yes
Length (In.)
10-13/16
Control Pendant Cord Length
10 ft
Mechanical Brake
Yes
Drum Capacity for 1/4 In. Cable
56 ft
No Load Line Speed
35 fpm
First Layer Line Speed
9 fpm
Pulley Block
No
Free Spooling Clutch Type
Lever
Pulling Capacity Single Line (Lbs.)
1200
Free Wheel
Yes
Remote Control
10 ft. Cord
Full Load Empty Reel Line Speed
9 fpm
Type Gearing
Spur
Full Load Full Reel Line Speed
16 fpm
Width (In.)
8-3/8
Full Load Line Speed
9.0 fpm
Winch Gear Ratio
189:1
Height (In.)
8-1/8
Winch Gear Type
Spur
Included Rope Dia.
3/16 in
Wire Rope (Ft. x In.)
25 x 3/16

Product Description

Spur Gear Dayton® models have precision needle bearings and heat-treated steel drive gears. High-impact cover and stainless steel front plate completely enclose cable and drum. Factory-installed remote control has 10-ft. cord. Units include friction brake for holding loads. Dutton-Lainson Stronarm models are rugged, high performance winches with efficient spur gear systems for longer run-time. Pulling capacities are based on third layer of cable rather than the first for a more realistic estimate of actual use. Precision needle bearings provide low friction and longer life. Final drive gears are heat-treated carbon steel for greater strength. Dynamic motor brake and friction brake for load holding. AC Electric Winches Include power In/Out. Pulling capacity given as a reference only and does not include friction factors that will vary according to specific applications. Note: Not recommended for outdoor use or areas where units could get wet. Should be used with a ground fault circuit interrupter.
