ROMEX

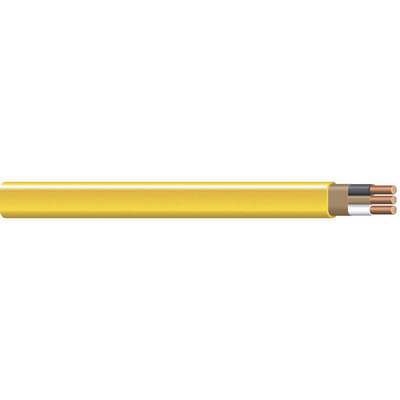

Nonmetallic Building Cable, NM-B, 12 AWG, Number of Conductors 2 with Bare CU Ground, 25 ft.

Hover over image to magnify
Nonmetallic Cable,12/2  Awg,
PI_Asset_1353885
Nonmetallic Cable,12/2  Awg,
PI_Asset_1353885

#914527-3 | Pkg Qty: 1

$34.31 pkg | $34.31 ea
Catalog:

Technical Specifications

Application
For Indoor Use
Nominal Outside Diameter
0.410 in. x 0.179 in.
Brand
ROMEX
Number of Conductors
2 with Ground
Cable Type
NM-B
Pack Quantity
1
Cable/Wire Type
NM-B
Packaging
Coil
Color Family
Yellow
Shipping Weight
2.25 lb.
Conductor
THHN
Spool Length
25 ft.
Description/Special Features
For indoor Use
Standards
UL
Gauge/Conductor
12/2 with Ground
Stranded / Solid
Solid
Indoor/Outdoor
Indoor
Temperature Range
194
Insulation Material
PVC
Temperature Rating
194F
Item
Nonmetallic Building Cable
Type
Nonmetallic
Jacket Color
Yellow
Voltage
600 V
Jacket Material
PVC
Wire Color
Bare, Black, White
Jacket Type
PVC
Wire Size
12 AWG
Length
25 ft.
Wire and Cable Item
Nonmetallic Building Cable
Maximum Amps
20
Wire/Cable Jacket Material
PVC
Maximum Voltage
600 V
Wire/Cable Size
12 AWG
Mfr. Part Number
28828221

Product Description

Nonmetallic sheathed (NM-B) building cable is a flexible electrical cable consisting of three or more wire conductors (including one for grounding) bundled inside a thermoplastic jacket, or sheath, that is nonconductive and heat-resistant. It's lighter than armored building cable, making it easier to handle, and its pliable sheathing is easier to unspool and straighten out. It is commonly used in residential and commercial applications to provide power for outlets, lighting, and appliances. Type NM-B cable is for enclosed, interior wiring in dry locations only (typically within a wall, ceiling, or under a floor) and should not be used outdoors or anywhere it might get wet.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
