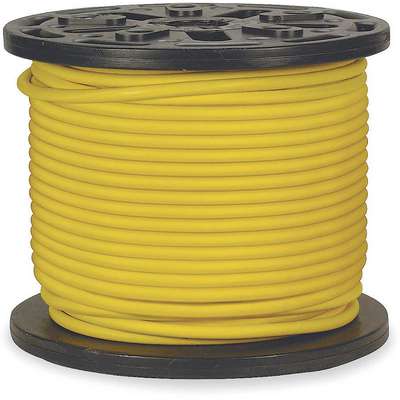

914467-4 Air Hose: 3/8 in Hose Inside Dia., Yellow, 300 psi Max. Working Pressure @ 70 F, PVC

Technical Specifications

Key Specifications

Air Hose Length Range

250 ft. or Greater

Brand

APPROVED SUPPLIER

Color Family

Yellow

Coupled Assembly/Bulk

Bulk

Cover Material

PVC

Hose Length

500 ft.

Hose Media

Air

Hose Outside Diameter

3/5 in.

Inside Diameter

3/8 in.

Item

Air Hose

Maximum Pressure

300 psi

Mfr. Part Number

20307546

Package Quantity

1

Shipping Weight

51 lb.

Subgroup - Pneumatic Hose

Multipurpose Air Hose

Temperature Range

-10 deg. F to 158 deg. F

Tube Material

PVC

Air Hose Length Range

250 ft. or Greater

Item

Air Hose

Brand

APPROVED SUPPLIER

Maximum Pressure

300 psi

Color Family

Yellow

Mfr. Part Number

20307546

Coupled Assembly/Bulk

Bulk

Package Quantity

1

Cover Material

PVC

Shipping Weight

51 lb.

Hose Length

500 ft.

Subgroup - Pneumatic Hose

Multipurpose Air Hose

Hose Media

Air

Temperature Range

-10 deg. F to 158 deg. F

Hose Outside Diameter

3/5 in.

Tube Material

PVC

Inside Diameter

3/8 in.

General

For Media Type

Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethylene Glycol, Glycerin, Heptane, Hexane, Isopropanol, Methanol, Nitric Acid, Nitrogen Gas, Parrafins (Wax), Potassium Hydroxide (50%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Sulfuric Acid, Water

Hose Configuration

Bulk Hose

Hose Cover Material

PVC

Hose Tube Material

PVC

Max. Working Pressure @ 70 F

300 psi

Not Recommended Chemicals

Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, E85, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Hydrogen Peroxide, Kerosene, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Phosphoric Acid (40% Solution), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Steam, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Safety Factor

4:1

Standards

RMA Class B

For Media Type

Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethylene Glycol, Glycerin, Heptane, Hexane, Isopropanol, Methanol, Nitric Acid, Nitrogen Gas, Parrafins (Wax), Potassium Hydroxide (50%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Sulfuric Acid, Water

Max. Working Pressure @ 70 F

300 psi

Hose Configuration

Bulk Hose

Not Recommended Chemicals

Acetic Acid (Glacial), Acetone, Ammonium Hydroxide, Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, Dry Food, E85, Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Hydrogen Peroxide, Kerosene, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Oxygen, Phosphoric Acid (40% Solution), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Steam, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Hose Cover Material

PVC

Safety Factor

4:1

Hose Tube Material

PVC

Standards

RMA Class B

Product Description

These bulk air hoses have a tube and cover that are made from PVC (polyvinyl chloride), which provides moderate resistance to oils. The hoses are lightweight and flexible, which minimizes the effort it takes to lift or move them. They do not conduct electricity. These hoses are used for carrying air, water, and various spray solutions to tools and equipment in industrial, construction, and agricultural hand-spraying applications.

Bulk air hoses are used to create custom hose assemblies for carrying compressed air to pneumatic tools and equipment. They can be cut to the desired length and compatible hose fittings can be added on the ends of the hoses to connect them to tools and equipment. These flexible air hoses accept fittings that are installed with crimps, ferrules, or clamps. The hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use. Air hoses are also sometimes known as pneumatic hoses or air compressor hoses.
