PARKER

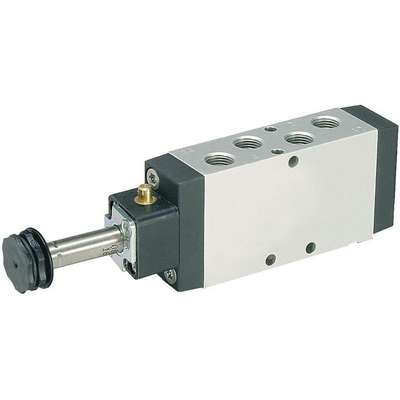

Solenoid Air Control Valve: Solenoid / Spring, 3/8 in Pipe Size, 2.5 cfm Max. CFM - Valves
Hover over image to magnify
#914439-2 | Pkg Qty: 1
$225.91 pkg | $225.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Solenoid/Spring
NPT Port
3/8
Air Consumption
scfm
Operational Pressure Range
22 to 174 psi
Ambient Temperature
-40 to 158 deg. C
Overall Height
1-3/4 in.
Body Style
Body Ported
Overall Length
7-1/2 in.
Brand
PARKER
Overall Width
1-1/2 in.
Coefficient of Volume
2-1/2
Package Quantity
1
Connection
FNPT
Pipe Size
3/8 in.
Current Rating
Valveless Coil
Requires
22 MM Atex Connector
Cv
2-1/2
Series
Viking
Design
Direct Pipe Ported
Shipping Weight
1.2 lb.
Electrical Connections
Valveless Coil
Type
4 Way, 2 Position
Item
Solenoid Air Control Valve
Vacuum
With External Pilot
Maximum CFM
2-1/2
Valve Actuator/Return
Solenoid / Spring
Maximum Operating PSI
232
Valve Type
4-Way, 2-Position
Meets/Exceeds
IP 65
Valve Vacuum Range
0 to 28 in. Hg
Mfr. Part Number
P2LCX593ESHDDN
Valve Ways/Positions
4-Way/2-Position
NEMA Classification
NEMA 4, 4X
Width
1.18 in.
General
Actuator / Return
Solenoid/Spring
Pneumatic Valves Product Group
Solenoid Air Control Valve
Air Valve Type
4-Way, 2-Position
Vacuum Range
232 psig
Max. CFM - Valves
2.5 cfm
Valve Actuator / Return
Solenoid / Spring
Pilot Port Size
3/8 in NPT
Valve Ways and Positions
4-Way/2-Position
Product Description
Viking Series Solenoid Air-Control Valves
- Max. operating pressure: 232 psi Operating temp. down to -40°F Direct pipe ported Requires 22 or 30mm solenoid
Item Barcode
Solenoid Air Control Valve,3/8
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3FFC7 | Solenoid Air Control |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-008-006 | Solenoid Air Control |
