DAYTON

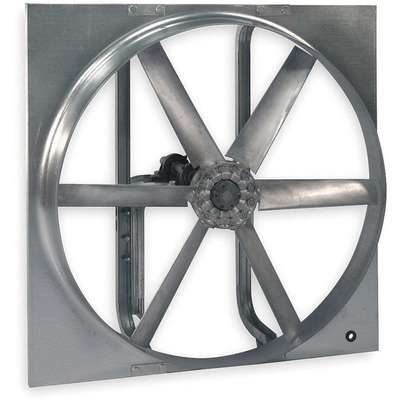

Dayton 5HP 208/230/460V Belt Drive Reversible Reversible Exhaust/Supply Fan

Hover over image to magnify
Reversible Fan,W/ Drive Pkg,
PI_Asset_928616
Reversible Fan,W/ Drive Pkg,
PI_Asset_928616

#914394-7 | Pkg Qty: 1

$2,719.43 pkg | $2,719.43 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Assembled/Unassembled
Unassembled
Motor Type
3-Phase
Bearing Type
Regreaseable Cast Pillow Block
Mounting Position
Vertical
Blade Diameter
36 in.
Number of Blades
6
Blade Material
Cast Aluminum
Package Quantity
1
Brand
DAYTON
Phase
3
Height
40 in.
Shaft Diameter
1-1/4 in.
Item
Reversible Exhaust/Supply Fan
Shipping Weight
189.31 lb.
Mfr. Part Number
7AR29
Voltage
208/230/460
Motor Enclosure
Totally Enclosed Fan-Cooled
Width
40 in.
Motor HP
5
General
Assembled
Unassembled
Maximum Inlet Temperature
104 Degrees F
Enclosure Design
Totally Enclosed Motor
Maximum Noise Level
45 sones
Exhaust Airflow @ 0.000 in SP
23,782 cfm
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 50 sones
Exhaust Airflow @ 0.125 in SP
22,951 cfm
Motor Enclosure Design
Totally Enclosed Fan Cooled (TEFC)
Exhaust Airflow @ 0.250 in SP
22,043 cfm
Motor Horsepower
5 hp
Exhaust Airflow @ 0.375 in SP
20,995 cfm
Motor Speed
1,420 RPM
Exhaust Airflow @ 0.500 in SP
19,985 cfm
Nameplate Voltage
208-230/460V AC
Fan Style
Panel
Noise Level @ 0.000 in SP @ 5 ft
45 sones
Fan Voltage
208/230/460
Noise Level @ 0.125 in SP @ 5 ft
64 sones
Flange Depth
1 in
Nominal Voltage
208-230/440V AC
For Cut-Out Diameter
36 in
Number of Fans
1
For Cut-Out Height
38 1/2 in
Square Opening Required
Greater than 30 in
For Cut-Out Length
38 1/2 in
Supply Airflow @ 0.000 in SP
23,782 cfm
For Cut-Out Width
38 1/2 in
Supply Airflow @ 0.125 in SP
22,951 cfm
Full Load Current
14.8 A
Supply Airflow @ 0.250 in SP
22,043 cfm
Includes
Drive Package
Supply Airflow @ 0.375 in SP
20,995 cfm
Includes Motor
Yes
Supply Airflow @ 0.500 in SP
19,985 cfm
Manufacturer Warranty Length
1 yr
Vent Design
Ductless
Max. Exhaust/Supply Airflow at 0.000 in SP
23,782 cfm / 23,782 cfm
Ventilation Type
Reversible
Maximum Airflow
23,782 cfm
Venturi Depth
6 in
Maximum Ambient Operating Temperature
104 Degrees F
Venturi Diameter
36 1/2 in
Maximum Exhaust Airflow @ 0.000 in SP
20,001 to 30,000 cfm

Product Description

Reversible Belt-Drive Exhaust/Supply Fans

  • Mount: vertical or horizontal Regreasable cast pillow block bearings Max. inlet/ambient temp.: 104°F Variable-pitch, adjustable motor pulley optimizes fan performance Designed for commercial and industrial applications requiring both supply and exhaust air. Fans feature 6-blade cast-aluminum propellers and rigid drive-frame rails. Motor, sheaves, bushings, belts, and reversing switch are packed separately when complete fan with drive package is ordered. Air handling-quality bearings meet a min, of L10-100,000 hr. UL and C-UL Listed. Note: OSHA-complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel. Review OSHA codes and UL standards. See Index under Guards, Fan.
