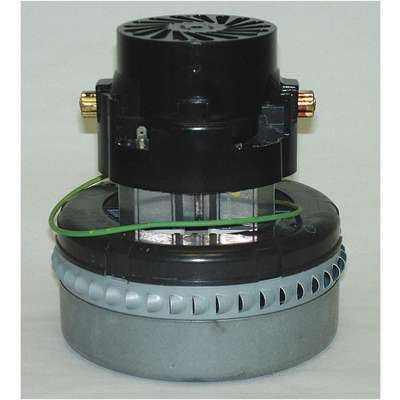

Vacuum Motor, Peripheral Bypass Discharge, Body Dia. 5.7", Voltage 120V AC, Blower Stages 2

Hover over image to magnify
Vacuum Mtr/Blwr,Peripheral,2
Vacuum Mtr/Blwr,Peripheral,2

#914377-3 | Pkg Qty: 1

$126.03 pkg | $126.03 ea

Loading Stock Status...

Item Number 914377-3
Scanner Description Vacuum Mtr/Blwr,Peripheral,2
Inventory Status Drop Ship Item
Weight 5.15 lb
Brand AMETEK LAMB

Technical Specifications

Average Life
500 hr
Motor Design
Universal AC/DC
Bearings
Ball
Mounting
All Position
Brand
AMETEK LAMB
Mounting Brackets
Thermoset
Discharge
Peripheral Bypass
Nameplate RPM
22450
Duty
Intermittent
Number of Speeds
1
Duty Cycle
Intermittent
Overall Height
6-5/16 in.
Efficiency
Standard
Overall Length
6-5/16 in.
Enclosure
Open Dripproof
Pack Quantity
1
Frame
Non-Standard
Phase
Single
Full Load Amps
7.9
Standards
UL Listed (E47185)
Hz
60/50
Thermal Protection
None
Insulation Class
A
Vacuum Rating
84.3
Item
Vacuum Motor
Voltage
120 VAC
Mfr. Part Number
119414-00

Product Description

Peripheral discharge vacuum AC motors have a design where air flows into the bottom of the motor and is discharged through vents in the motor. They are equipped with a cooling fan on top of the motor that blows clean air over the motor for more reliable cooling compared to thru-flow and tangential motors. These motors have a high starting torque, operate at high speed, and create vacuum pressure and suction by a rotating motor fan. They move clean and dry air in commercial canister or utility vacuums, sprayers and foggers, material handling and transfer systems, car wash vacuums, and central vacuum systems.
