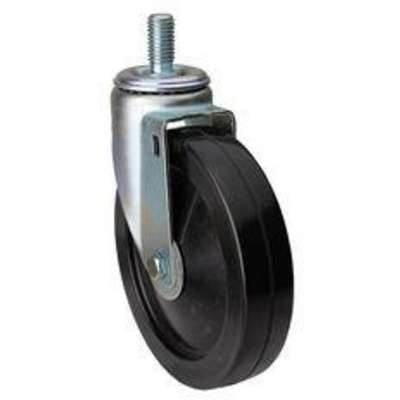

General Purpose Threaded Stem Caster: 6 in Wheel Dia., 280 lb, Swivel Caster

Hover over image to magnify
Swivel Stem Caster,6 In,280 Lb,
Swivel Stem Caster,6 In,280 Lb,

#914375-7 | Pkg Qty: 1

$27.19 pkg | $27.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
280 lb.
Caster Brake Included
No
Mfr. Part Number
32J978
Caster Core Material
Rubber
Mounting Type
Threaded Stem
Caster Group
Swivel Caster
Non-Marking
No
Caster Load Rating Range
Light Duty
Number of Wheels
1
Caster Raceway
Double Ball
Package Quantity
1
Caster Stem Type
Threaded
Replacement Wheel
26Y377
Caster Sub-Type
Swivel
Shipping Weight
3.2 lb.
Caster Temperature Range
-40 deg. F to 158 deg. F
Stem Diameter
5/8 in.
Caster Temperature Range Available
Yes
Stem Length
1-1/4 in.
Caster Thread Size
5/8-11
Stem Type
Threaded
Caster Wheel Bearings
Plain
Wheel Bearings
Delrin®
Caster Wheel/Tread Material
Rubber
Wheel Color
Black
Core Color
Black
Wheel Diameter
6 in.
Core Material
Rubber
Wheel Material
Rubber
Frame Finish
Zinc Plated
Wheel Width
1-1/4 in.
Item
Stem Caster
General
Application
U.S. Postal Service, Hamper and Utility Carts
Raceway
Double Ball
Brake Type
No Brake Included
Standards
ANSI/ICWM
Caster Frame Material
Steel
Stem Dia.
5/8 in
Caster Mounting Type
Stem
Swivel Raceway Type
Double Ball
Caster Product Group
Swivel Caster
Tread Shape
Standard
Caster Stem Size
5/8"-11 x 1-1/4 in
Wheel Bearing Type
Plain
Caster Temp. Range Available
Yes
Wheel Core Material
Rubber
Load Rating Range
0 to 299 lb
Wheel Dia.
6 in
Operating Temperature Range
-40° to 158°F
Wheel/Tread Material
Rubber

Product Description

General purpose threaded stem casters are used on carts, furniture, storage cabinets, storage bins, display stands, appliances, retail fixtures, and other equipment in a wide variety of institutional and industrial settings. They have double ball swivel bearings that allow the caster to swivel smoothly.

Threaded stem casters are the most commonly used type of stem caster. They have a threaded stem on top that screws into a threaded hole, bracket, insert, or socket on a piece of equipment. The casters allow the equipment to roll, which reduces the effort it takes to move or reposition the equipment. Threaded stem casters are typically used to add casters on equipment where there is not enough room on the equipment's mounting surface to attach a plate caster's mounting plate.
