1/2 HP Construction Site/Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 2", 20 f

Hover over image to magnify

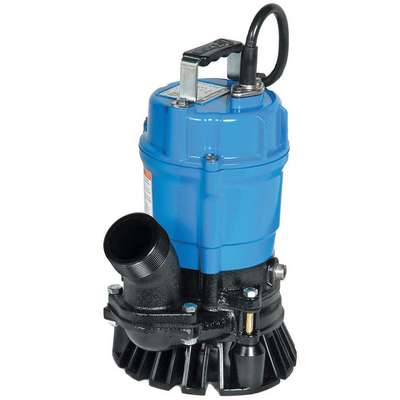

Submersible Trash Pump,1/2 Hp,
Submersible Trash Pump,1/2 Hp,

#914368-3 | Pkg Qty: 1

$377.94 pkg | $377.94 ea
Item Number 914368-3
Scanner Description Submersible Trash Pump,1/2 Hp,
Inventory Status Drop Ship Item
Weight 30 lb
Brand TSURUMI

Technical Specifications

Agency Compliance
Etl/Cetl
Input Phase AC
1
Amps
5.4 AC
Insulation Class
E
Application
Nonflammable Liquids
Item
Construction Site/Residential Dewatering Pump
Base Material
PVC
Length
12-15/16 in.
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Manufacturers Warranty Length
2 yr.
Brand
TSURUMI
Maximum Diameter Solids
1/4 in.
Cord Length
20 ft.
Maximum Head
39 ft.
Cord Size
16/3
Maximum Liquid Temperature
104°F
Cord Type
3-Conductor STOW, Resists Water and Oil
Mfr. Part Number
HS2.4S-62
Diameter
10-1/16 in.
Minimum Sump Pit Diameter
18 in.
Discharge NPT
2 in.
Motor Housing
Die Cast Aluminum
Duty
Continuous
Motor RPM
3320
Features
Dewatering
Motor Type
PSC
For Use With
Nonflammable Liquids
Pack Quantity
1
Function
Dewatering
Phase
1
GPM @ 1 Ft. of Head
53
Pump HP
1/2
GPM of Water @ 10 Ft. of Head
46
Pump RPM
3320
GPM of Water @ 15 Ft. of Head
40
Pump Type
Construction Site and Residential Dewatering
GPM of Water @ 20 Ft. of Head
35
RPM
3320
GPM of Water @ 25 Ft. of Head
28
Shaft Material
Stainless Steel
GPM of Water @ 30 Ft. of Head
20
Shaft Seal
Silicone Carbide
GPM of Water @ 35 Ft. of Head
10
Shaft Seal Material
Silicone Carbide
GPM of Water @ 5 Ft. of Head
53
Suction
Screened Bottom
Handle
Top Carrying
Switch Type
No Switch Included
Height
12-15/16 in.
Thermal Protection
Automatic
Horsepower
1/2
Top Material
Die Cast Aluminum
Housing
Die Cast Aluminum
Type
Construction Site and Residential Dewatering
Housing Material
Die Cast Aluminum
Voltage
120 VAC
Hz
60
Warranty
2 Years
Impeller Material
Urethane Rubber
Width
10-1/16 in.

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
