DAYTON

Dayton 12VDC Coil Volts, General Purpose Relay, 15A @ 120/277VAC/15A @ 28VDC Contact Rating, Square

Hover over image to magnify

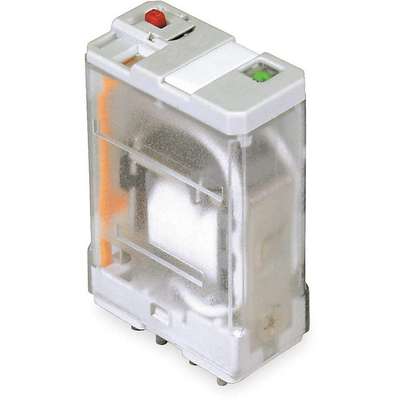

Relay,Ice Cube,Spdt,12VDC,Coil
Relay,Ice Cube,Spdt,12VDC,Coil
Dayton 12VDC Coil Volts, General Purpose Relay, 15A @ 120/277VAC/15A @ 28VDC Contact Rating, Square Video

#914357-9 | Pkg Qty: 1

$22.02 pkg | $22.02 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
20 A @ 120/277 V
Mounting
Plug In
Base Type
Square
Number of Contacts
1
Body Depth
1.1 in.
Number of Pins
5
Body Height
1.6 in.
Number of Poles
1
Body Width
0.53 in.
Overall Height
1.95 in.
Brand
DAYTON
Pack Quantity
1
Coil Volts
12 VDC
Pins
5
Contact Form
SPDT
Plug-In Relay Style
General Purpose
Contact Material
Silver Alloy
Push To Test
Lockable
Contact Rating
15 A @ 277 VAC/28 VDC
Relay Power Consumption
0.7 W
DC Contact Rating
20 A @ 28 V
Resistive Contact Amp Rating
20
HP @ 120 V
1/2 hp
Shipping Weight
.05 lb.
HP @ 240 V
1 hp
Socket
1EGP6
Hz
50/60
Socket Code
L
Item
General Purpose Relay
Status Indicator
LED and Mechanical Flag
Mfr. Part Number
1EHE3
Type
Plug In, Ice Cube
General
AC Contact Rating - Relay
15A @ 120/277V
HP @ 120V
1/2 hp
Base Type - Plug In Relay
Square
HP @ 240V
1 hp
Body Depth - Relay
1.1 in
Mounting - Relay
Plug In
Body Height - Relay
1.6 in
Number of Pins - Relay
5
Body Width - Relay
0.53 in
Overall Height - Relay
1.95 in
Contact Form - Relay
SPDT
Power Consumption - Relay
0.7 W
DC Contact Rating - Relay
15A @ 28V
Socket Code - Relay
L
Features
Max. Switching Voltage 300 VAC
Standards
E40944

Product Description

General Purpose Relay, Coil Volts 12V DC, AC Contact Rating - Relay 15A @ 120/277V, DC Contact Rating - Relay 15A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 5, Contact Form - Relay SPDT, Mounting - Relay Plug In, Socket Code - Relay L, Power Consumption - Relay 0.7 W, Contact Material Silver Alloy, Status Indicator LED and Mechanical Flag, Push To Test Lockable
