OMRON

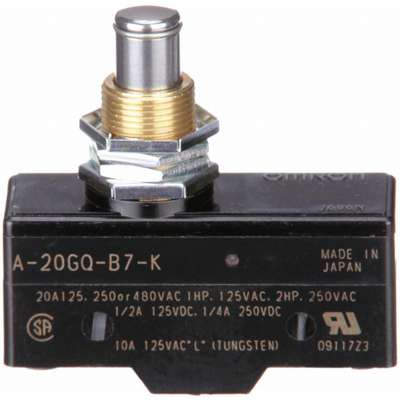

Omron 20A @ 480 V Panel Mount, Plunger Industrial Snap Action Switch; Series A

Hover over image to magnify
Snap Switch,20A,Spdt,Panel
PI_Asset_1371043
Snap Switch,20A,Spdt,Panel
PI_Asset_1371043

#914351-5 | Pkg Qty: 1

$22.93 pkg | $22.93 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
20 A @ 480 V
Maximum Pretravel
0.051 in.
Actuator Length
Not Applicable
Mfr. Part Number
A-20GQ-B7-K
Actuator Type
Panel Mount, Plunger
Mounting Dimension
1.00 in. Centers
Basic Actuator Type
Plunger
Number of Circuits
1
Brand
OMRON
Operating Force
14.1 to 22.0 oz.
Contact Form
SPDT
Operating Temperature Range
-2 deg. C to 8 deg. C
Contact Type
SPDT
Over Travel
0.220 in.
Current Rating
20A
Release Force
10.00 oz.
DC Contact Rating
20 A @ 14 V
Series
A
Differential Travel
0.008 in.
Shipping Weight
.1 lb.
Electrical Connection
Screw
Snap Action Switch Type
Industrial Snap Action Switch
Housing Material
Plastic
Type of Actuator
Panel Mount Plunger
Item
Industrial Snap Action Switch
Voltage
480
Length
1.94 in.
Voltage Rating
480 VAC
Lever Actuator Length
Not Applicable
General
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Electrical Connection - Snap Action Switch
Screw
Actuator Type - Snap Action Switch
Panel Mount, Plunger
Mounting Dimension - Snap Action Switch
1.00 in Centers
Basic Actuator Type - Snap Action Switch
Plunger
Number of Circuits - Snap Action Switch
1
Contact Form- Switches
SPDT
Operating Temp. Range
-25° to 80°C
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Watertight - Snap Action Switch
No

Product Description

This snap-action switch is functionally interchangeable with Unimax 2HB series switches. Use in heavy-duty applications.

Item Barcode
9143515
Snap Switch,20A,Spdt,Panel
 NameItemDescription
Grainger DropshipGrainger Dropship6X288Snap Switch, 20A,SPDT,
UNSPSC CODESUNSPSC CODES39122209
VMRS (ATA) CODESVMRS (ATA) CODES034-004-081Snap Switch, 20A,SPDT,
