ACUITY LITHONIA

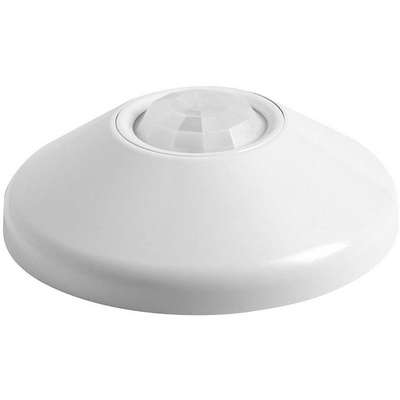

Acuity Lithonia Ceiling Hard Wired Occupancy Sensor, 452 sq. ft. Passive Infrared, White
Hover over image to magnify
#914328-3 | Pkg Qty: 1
$142.58 pkg | $142.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
ACUITY LITHONIA
Mfr. Part Number
CMR 9 P
Color Family
White
Package Quantity
1
Coverage
452 sq. ft.
Sensor Type
Passive Infrared
Installation Location
Ceiling
Shipping Weight
.35 lb.
Item
Occupancy Sensor
Viewing Angle
360 deg.
Light Technology
Fluorescent, Incandescent, LED
Voltage
120/277 VAC
General
Communication Method - Motion Sensing and Dimming
Hard Wired
Operating Voltage - Motion Sensing and Dimming
120 V AC, 277 V AC
Coverage Angle - Motion Sensor
360 Degrees
Sensing Technology
Passive Infrared
Coverage at Suggested Mounting Height
452 sq ft
Standards
UL and cCA Title 24 Compliant
For Use With
Fluorescent and Incandescent Lighting Loads
Suggested Mounting Height - Motion Sensor
8 to 15 ft
Max. Capacity @ 120VAC
800W (Fluorescent, Incandescent)
Time Delay - Motion Sensor
30 sec to 20 min
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Time Delay Adjustment Method - Motion Sensor
Adaptive, Manual
Product Description
This occupancy sensor automatically turns lights off when occupants leave a room, which may help to reduce unnecessary energy consumption and lower costs.
Item Barcode
Occupancy Sensor,Pir,452 Sq.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 34A206 | Occupancy Sensor,PIR, |
 | UNSPSC CODES | 46171608 | |
 | VMRS (ATA) CODES | 034-004-089 | Occupancy Sensor,PIR, |
