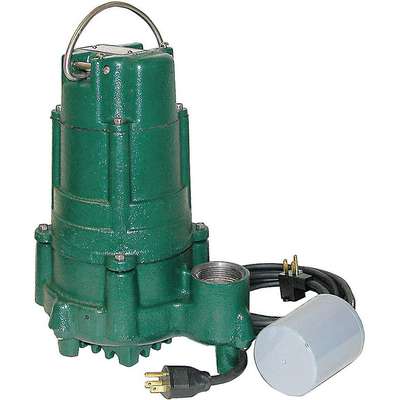

1 HP Submersible Sump Pump, Piggyback Float Switch Type, Cast Iron Base Material

1 HP Submersible Sump Pump, Piggyback Float Switch Type, Cast Iron Base Material
Sump Pump,1HP,1-1/2In NPT,50ft
PI_Asset_971387
1 HP Submersible Sump Pump, Piggyback Float Switch Type, Cast Iron Base Material Video

#914315-9 | Pkg Qty: 1

$730.80 pkg | $730.80 ea
Item Number 914315-9
Scanner Description Sump Pump,1HP,1-1/2In NPT,50ft
Inventory Status Drop Ship Item
Weight 50.4 lb
Brand ZOELLER

Technical Specifications

Agency Compliance
CSA
Manufacturers Warranty Length
1 yr.
Alarm
No
Maximum Diameter Solids
3/4 in.
Alarm Included
No
Maximum Head
50 ft.
Amps
12
Maximum Liquid Temperature
130°F
Base Material
Cast Iron
Maximum Temperature (Deg. F)
130
Bearing Type
Dual Ball
Mechanical Seal
CRB/CMC
Brand
ZOELLER
Mfr. Part Number
140-0029
Cord Length
10-3/16 in.
Minimum Sump Pit Diameter
18 in.
Diameter
10-3/16 in.
Motor RPM
3450
Discharge NPT
1-1/2 in. F
Motor Type
Permanent Split Capacitor
Duty
Intermittent
NEC Cord Designation
SOW
Features
Durable Cast Iron Construction, Available In Both Single and Double Shaft Seal Designs, Stainless Steel Bolts and Lifting Handle
Off Point
Variable
GPM of Water @ 10 Ft. of Head
80
On Point
Variable
GPM of Water @ 15 Ft. of Head
73
Pack Quantity
1
GPM of Water @ 20 Ft. of Head
66
Pump Body Material
Cast Iron
GPM of Water @ 25 Ft. of Head
59
Pump HP
1
GPM of Water @ 30 Ft. of Head
49
Pump Type
Automatic
GPM of Water @ 35 Ft. of Head
39
RPM
3450
GPM of Water @ 40 Ft. of Head
28
Shaft Material
Cold Formed Steel
GPM of Water @ 5 Ft. of Head
86
Shaft Seal
Carbon/Ceramic
Gauge/Conductor
16/3
Shaft Seal Material
Carbon, Ceramic
Height
12-3/8 in.
Standards
CSA
Horsepower
1
Sump Pump Item
Submersible Sump Pump
Housing
Cast Iron
Switch Type
Piggyback
Housing Material
Cast Iron
Thermal Protection
Yes
Hz
60 HZ
Top Material
Cast Iron
Impeller Material
Polypropylene
Type
Automatic
Includes
Piggyback Float Switch
Voltage
120 VAC
Item
Submersible Sump Pump
Warranty
3 yr.

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
