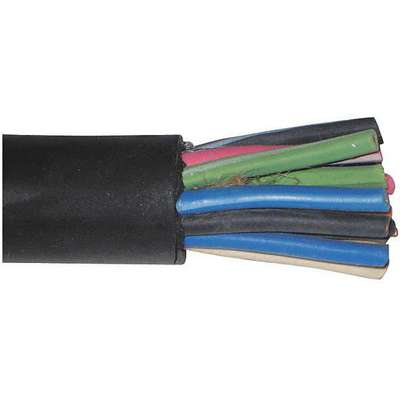

250 ft. Portable Cord; Conductors: 12, Wire Size: 18 AWG, Jacket Type: SOOW, Jacket Color: Black

Hover over image to magnify
Portable Cord,Soow,18/12 Awg,
PI_Asset_1354829
Portable Cord,Soow,18/12 Awg,
PI_Asset_1354829

#914313-4 | Pkg Qty: 1

$1,581.58 pkg | $1,581.58 ea
Item Number 914313-4
Scanner Description Portable Cord,Soow,18/12 Awg,
Inventory Status Drop Ship Item
Weight 64.8 lb
Brand CAROL

Technical Specifications

Brand
CAROL
Mfr. Part Number
09812.35.01
Color Code
Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red
Nominal Outside Diameter
0.600 in.
Color Family
Black
Number of Conductors
12
Conductor
Copper
Pack Quantity
1
Conductor Material
Copper
Special Features
Abrasion Resistant, Resist Oils and Solvents, Water, Flame and Ozone Resistant
Description/Special Features
Extra Flexible Stranding, Abrasion Resistant, Resist Oils and Solvents, Water, Flame and Ozone Resistant
Spool Length
250 ft.
Features
Extra Flexible Stranding, Abrasion Resistant, Resist Oils and Solvents, Water, Flame and Ozone Resistant
Spool/Coil Length
250 ft.
Gauge/Conductor
18/12
Standards
UL Flexible Cord, CSA Flexible Cord, MSHA Approved, RoHS Compliant
Indoor/Outdoor
Indoor/Outdoor
Stranded / Solid
Stranded
Item
Portable Cord
Temperature Range
-40 deg. F to 194 deg. F
Jacket Color
Black
Type
SOOW
Jacket Material
EPDM Rubber
Voltage
600 V
Jacket Type
SOOW
Wire Color
Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White
Length
250 ft.
Wire Size
18 AWG
Maximum Amps
3-1/2
Wire and Cable Item
Portable Cord
Maximum Voltage
600 V
Wire/Cable Size
18 AWG

Product Description

SOOW and SJOOW portable cord are types of heavy-duty service cord with oil-resistant insulation and a flexible thermoset rubber jacket that is oil-, water-, and weather-resistant. The jacket hardens under a direct application of heat. This allows the cord to be unaffected by aging, abrasion, water, sunlight, and ozone, making it extremely durable. SOOW cord is rated for 600V while SJOOW, a junior service cord, is rated for 300V. SOOW is the most popular type of portable cord and is typically used to power industrial applications, such as machines and power tools, and marine applications, such as dockside motors.

Portable cord is flexible, moveable electrical cable that consists of one or more insulated conductors enclosed in a jacket. It is typically used for temporary power connections. Portable cord can be exposed to constant flexing and harsh environmental conditions, including temperature extremes, oil, chemicals, and abrasive materials. There are multiple types of portable cord, as designated by industry standard letter codes that describe various attributes (temperature range, wire size) and ratings (voltage) and help ensure the best cord is selected for an application. Portable cord is commonly used for temporary wiring projects in industrial and commercial facilities, such as supplying power to portable tools, appliances, and equipment, as well as small motors and associated machinery. It does not include plugs on the ends of the cord.
