CADDY

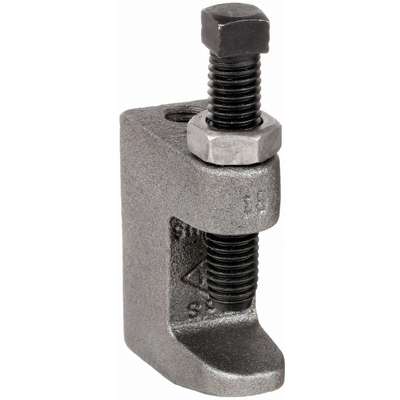

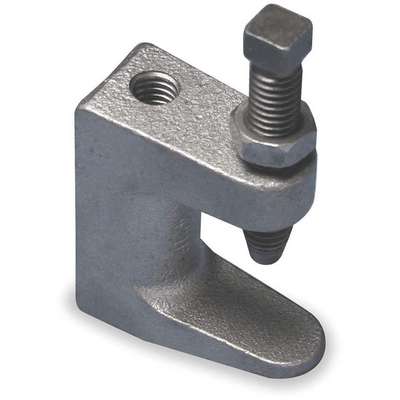

Wide Mouth Beam Clamp, Steel
Hover over image to magnify
#914309-9 | Pkg Qty: 1
$8.35 pkg | $8.35 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CADDY
Mfr. Part Number
3100037PL
Item
Beam Clamp
Package Quantity
1
Length
1-1/4 in.
Shipping Weight
.4 lb.
Material
Steel
Width
1 in.
Metal Detectable
Yes
General
Max. Load (Lb.)
Top of Beam 500 and Bottom 250
Product Description
Structural attachment for top or bottom of metal beams, purlins, channels, or angle iron. Hardened steel setscrew. Max. flange size: 3/4". Install in accordance with ANSI/MSS-SP-69.
Expertly Selected Product Pairings
Documents
Item Barcode
Wide Mouth Beam Clamp,3/8 In
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1RUY5 | Wide Mouth Beam Clamp,3/ |
 | UNSPSC CODES | 40141725 | |
 | VMRS (ATA) CODES | 053-008-004 | Wide Mouth Beam Clamp,3/ |
