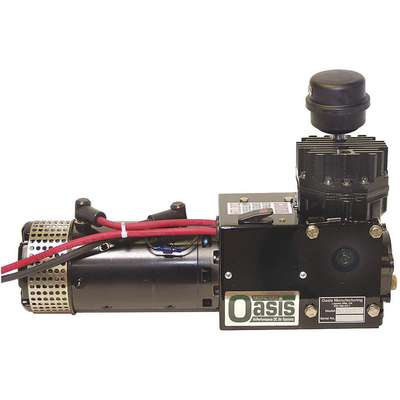

2.2 HP, 12VDC Vehicle Mounted Air Compressor, 200 psi

Hover over image to magnify
Air Compressor,Extreme Duty,
PI_Asset_973165
PI_Asset_973166
Air Compressor,Extreme Duty,
PI_Asset_973165
PI_Asset_973166

#914305-5 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Air Compressor,Continuous Duty,
$2,459.94 pkg | $2,459.94 ea
Item: 915103-3
Pkg Qty: 1

Technical Specifications

Key Specifications
(F)NPT Outlet
3/8 in.
Lubrication Type
Oil Lubricated
Air Consumption
scfm
Maximum Pressure
200 psi
Brand
OASIS
Mfr. Part Number
XD3000-12
Cylinder Material
Cast Iron
Overall Height
11 in.
Free Air CFM @ 90 PSI
8
Overall Length
21 in.
Free Air CFM @ Max Pressure
8
Overall Width
7 in.
Full Load Amps
160
Pack Quantity
1
Horsepower
2.2
Product Weight
62 lb.
Input Voltage
12 VDC
Shipping Weight
68 lb.
Item
Vehicle Mounted Air Compressor
Voltage
12 VDC
General
Air Tank Style
Tankless
Input Voltage - Air Compressor
12V DC
Compressor Lubrication Type
Oil Lubricated
Lubrication Type - Air compressor
Oil Lubricated
Free Air CFM @ 90 PSI - Air Compressor
8.0
Max. Pressure - Air Compressor
200 psi
Free Air CFM @ Max. Pressure - Air Compressor
8.0
Outlet Gender
Female
Free Air Flow Rate
8 cfm
Output Power
2.2 hp
HP
2.2
Sound Level Range
Standard (70 dBA or more)
HP - Air Compressor
2.2 hp

Product Description

This Oasis low noise, vehicle-mounted air compressor is powered by clean DC electricity and doesn't generate exhaust fumes like gasoline or diesel engines. No need to worry about fuel spills, refilling the fuel tank, or worrying about engine maintenance. Model comes with a fan-cooled motor and features a low voltage cut-off circuit to help protect the motor from damage due to stalling. Designed to be mounted on service trucks, tow trucks, and maintenance vehicles in commercial and industrial applications.
