1/4" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

1/4" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

#914304-4 | Pkg Qty: 1

$211.22 pkg | $211.22 ea
Item Number 914304-4
Scanner Description Frl,1/4 In. NPT,51 Cfm,32250
Inventory Status Drop Ship Item
Weight 4.34 lb
Brand SPEEDAIRE

Technical Specifications

Adjustment
5 to 150 psi
Maximum Temperature (Deg. F)
150
Air Consumption
scfm
Mfr. Part Number
7D692
Bowl Material
Metal with Sight Glass
NPT
1/4 in.
Brand
SPEEDAIRE
Number of Pieces
3
Drain Type
Manual
Overall Height
7.46 in.
Filter Rating
5 micron
Overall Width
6.46 in.
Item
Filter/Regulator/Lubricator
Pack Quantity
1
Maximum Flow
51 cfm
Pipe Size
1/4 in. NPT
Maximum Flow (CFM)
51 CFM
Type
3 Piece Modular Combination
Maximum Pressure
250 psi
Width
6.46 in.
Maximum Temperature
150 deg. F

Product Description

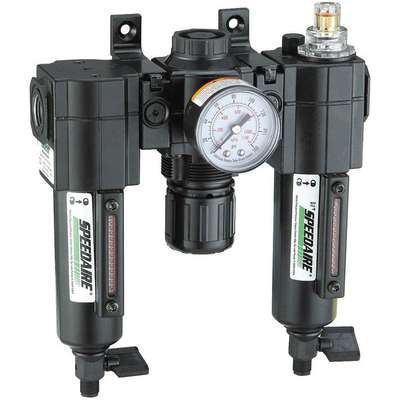

This 3-pc. unit combines filter, regulator, and MicroMist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop.

Item Barcode
9143044
  Name Item Description
Grainger Dropship Grainger Dropship 7D692 FRL,1/4 In. NPT,51 cfm,
UNSPSC CODES UNSPSC CODES 27131604
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 FRL,1/4 In. NPT,51 cfm,
