VERSA-MATIC
Double Diaphragm Pump: 1 1/4 in Inlet/Outlet Size, NPT Connection, 70 gpm Max. Flow
Hover over image to magnify
#914283-9 | Pkg Qty: 1
$2,008.72 pkg | $2,008.72 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE, EAC
Maximum Diameter Solids
3/16 in.
Air Inlet Size
1/2 in. FNPT
Maximum Flow
70 gpm
Ball Material
Buna N
Maximum Flow (GPM)
70
Body Material
Aluminum
Maximum Operating PSI
125
Brand
VERSA-MATIC
Maximum Operating Pressure
125 psi
Check Seat Material
Buna-N
Maximum Temperature (Deg. F)
180°F
Connection Style
NPT
Mfr. Part Number
E4AA2R220-ATEX
Diaphragm Design
Buna N
Mfr. Warranty Length
1 yr.
Diaphragm Material
Buna N
Operation Type
Air Operated
Height
18 in.
Package Quantity
1
Housing Material
Aluminum
Pump Operation Type
Air Operated
Inlet/Outlet
1-1/2 in. <lt/>SNF/<gt/> 1-1/4 in.
Self-Priming Dry
15 ft.
Inlet/Outlet Size
1-1/4 in.
Self-Priming Wet
25 ft.
Item
Double Diaphragm Pump
Shipping Weight
38.75 lb.
Length
11-1/2 in.
Valve Type
Ball
Manifold Connection
Single
Width
14-1/4 in.
General
Diaphragm Material - Pumps
Buna N
Max. Dia. Solids
3/16 in
Housing Material - Pumps
Aluminum
Product Description

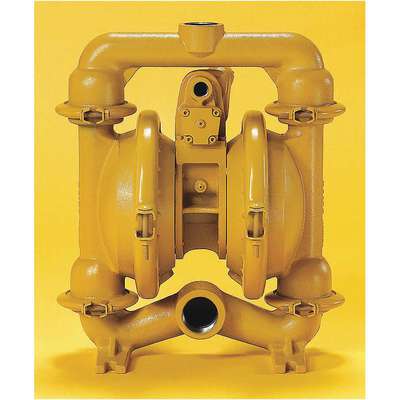

Air-operated diaphragm pump has standard-duty band clamp construction, which eases maintenance. Interchangeable with Wilden Original Series pumps. Self-priming and features the Elima-Matic® Air Valve System for a no stalling, lube-free performance.
Expertly Selected Product Pairings
Item Barcode
Double Diaphragm Pump,Aluminum,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4GGG3 | Double Diaphragm |
 | UNSPSC CODES | 40151548 | |
 | VMRS (ATA) CODES | 053-006-009 | Double Diaphragm |
