DAYTON

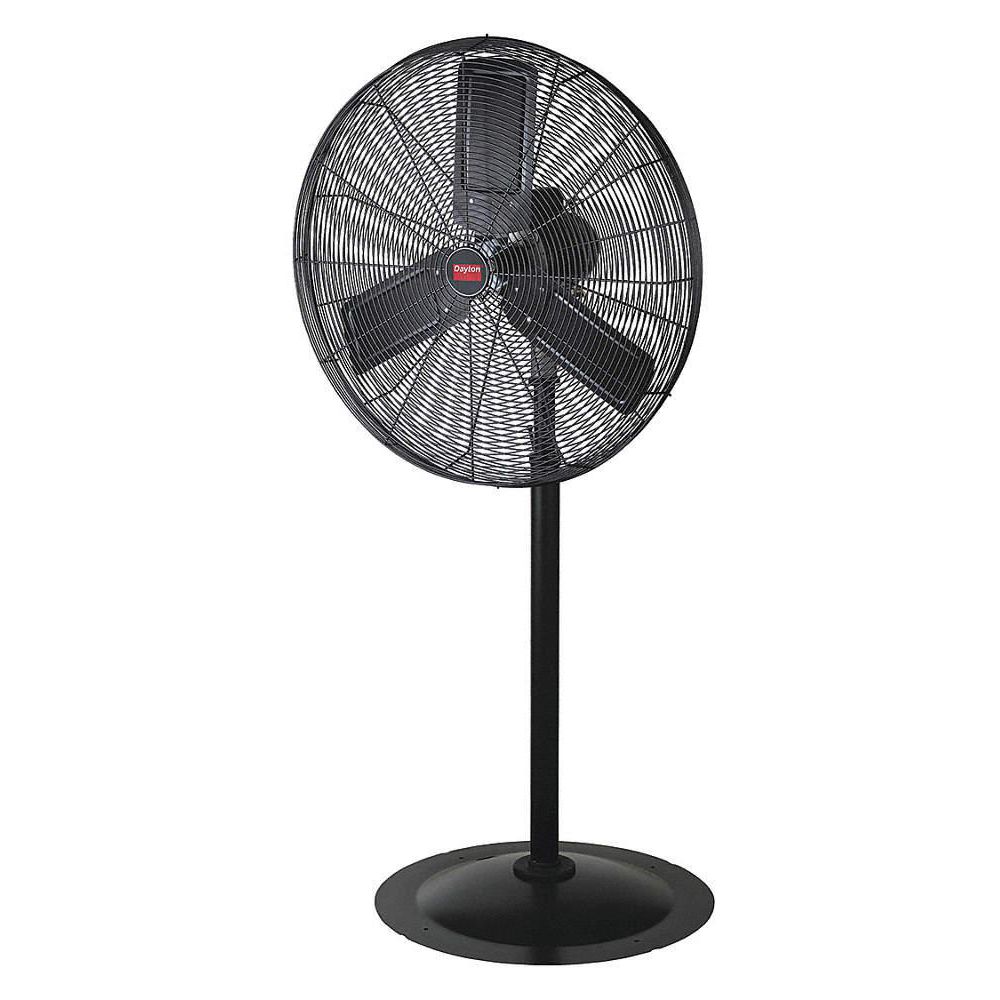

Dayton Light-Duty Industrial Fan: Light-Duty Industrial Fan, 30 in Blade Dia, 2 Speeds, 115 V AC

Hover over image to magnify
Air Circulator,30 In,8130 Cfm,
Air Circulator,30 In,8130 Cfm,

#914251 | Pkg Qty: 1

$533.57 pkg | $533.57 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
Adj 61-3/4 to 77 in.
Motor Insulation
Class B
Air Flow
7,260/8,200 cfm
Motor RPM
1100/850
Assembled/Unassembled
No
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Pedestal
Blade Diameter
30 in.
NEMA Plug Configuration
5-15P
Blade Material
Aluminum
Number of Blades
3
Brand
DAYTON
Number of Conductors
3
Cord Length
10 ft.
Oscillating
Yes
Drive Type
Direct
Package Quantity
1
Duty
Light Duty
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Height Range
Adj 61-3/4 - 77 in.
Shipping Weight
98 lb.
Hz
60 Hz
Sound Level
77 dBA
Item
Industrial Fan
Standards
cULus Listed
Mfr. Part Number
6ALE9
Thermal Protection
Automatic
Mobile/Stationary
Stationary
Voltage
115V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
450/369
Motor HP
1/2
Width
27-1/4 in.
General
Air Velocity @ 10 Ft.
994/817 fpm
Fan Cord Length
10 ft
Air Velocity @ 20 Ft.
610/525 fpm
Fan Housing Material
Steel
Air Velocity @ 40 Ft.
261/180 fpm
Fan Mounting Location
Pedestal
Application
Spot Cooling and People Cooling
Includes
Column, Mounting Hardware, Pedestal
Assembly Required
Yes
Max. Ambient Temp.
104 Degrees F
Base Dia.
27 in
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated Black

Product Description

Light-duty industrial pedestal fans cool light manufacturing areas, warehouses, and other dry, clean spaces. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have lower-horsepower motors with less-robust bearings.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
