HUBBELL WIRING DEVICE-KELLEMS

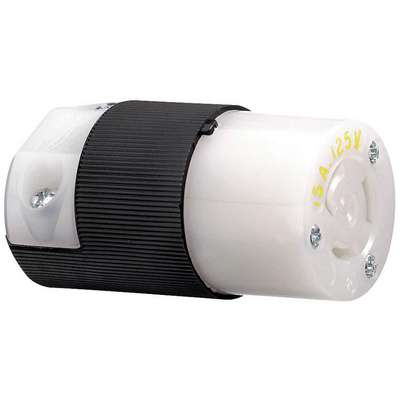

Hubbell Wiring Device-Kellems 15 Amp Industrial Grade Locking Connector, L5-15R NEMA Configuration, Black/White

Hover over image to magnify
Connector,125VAC,15A,L5-15R,2P,
PI_Asset_1981977
Connector,125VAC,15A,L5-15R,2P,
PI_Asset_1981977

#914237-7 | Pkg Qty: 1

$51.05 pkg | $51.05 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accessory Group
A
Maximum Operating Temperature
75 °C
Amperage
15 A
Maximum Wire Size
10 AWG
Amps
15 A
Mfr. Part Number
HBL4729C
Antimicrobial
No
Midget Locking
No
Boot Code
A
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
L5-15
Color Family
Black / White
NEMA Plug Configuration
L5-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
L5-15R
Contact Material
Brass
Number of Poles
2
Cord Size
0.230 in to 0.720 in
Number of Wires
3
Corrosion Resistant
No
Outside Diameter
1.527 in.
Current Rating
15 A
Overall Length
1.53 in.
Description
Insulgrip, Grounding
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Power Indicating Light
No
For Maximum Cable Diameter
0.72 in.
Power Indicator
No
For Minimum Cable Diameter
0.23 in.
Shipping Weight
.2 lb.
Grade
Industrial/Commercial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HP
1/2 HP
Subcategory
Connectors
Horsepower
1 hp
UL 94 Flammability Rating
HB
Housing Material
Nylon
Voltage
125VAC
IP Rating
IP20
Voltage Rating
125V AC
Item
Locking Connector
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
Material of Construction
Nylon
General
Amps - Plugs and Receptacles
15
NEMA Plug Configuration - Plugs and Receptacles
L5-15R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
125V AC
HP
0.5

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
