AMETEK LAMB

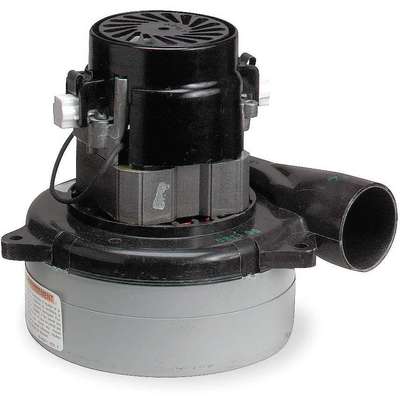

Ametek Lamb Vacuum Motor, Tangential Bypass Discharge, Body Dia. 5.7", Voltage 36V DC, Blower Stages 3

Hover over image to magnify
Vacuum Mtr/Blwr,Tangential,3
Vacuum Mtr/Blwr,Tangential,3

#914187 | Pkg Qty: 1

$196.90 pkg | $196.90 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Average Life
500 hr
Mounting
All Position
Bearings
Ball
Mounting Bracket Material
Aluminum
Brand
AMETEK LAMB
Mounting Brackets
Thermoset
Discharge
Tangential Bypass
Nameplate RPM
17950
Duty
Intermittent
Number of Speeds
1
Duty Cycle
Intermittent
Overall Height
5-25/32 in.
Enclosure
Open Dripproof
Overall Length
7-13/16 in.
Footnotes
69, 72
Pack Quantity
1
Frame
Non-Standard
Phase
Single
Full Load Amps
17.4
Shipping Weight
6.75 lb.
Insulation Class
A
Thermal Protection
None
Item
Vacuum Motor
Vacuum Rating
74
Mfr. Part Number
116513-13
Voltage
36 VDC
Motor Design
Universal AC/DC
General
Ambient Temperature
40°C
Motor Bearings
Ball
Bearing Protection
Air Sealed
Motor Enclosure Design
Open
Blower Stages
3
Motor Mounting Position
All Angle
Body Dia.
5.7 in
Motor Mounting Type
Lug
CFM @ 2-In. Orifice
76 cfm
Motor Thermal Protection
None
Inlet Tube Dia.
1 7/8 in
Motor/Blower Type
Bypass
Ins. Class
A
No. of Speeds
1
Max. Air Watts
185 W
Replacement Brushes
2UV71
Max. Ambient Temp.
40 °C
Standards
UL (E47185)
Motor Application
Universal AC/DC Motor
Voltage Compatibility
36V DC

Product Description

Tangential discharge vacuum DC motors allow air to flow into the bottom of the motor and through an air tube on the side, making these models suitable for wet pickup applications since debris and moisture will not contact the motor windings. They have high starting torque, operate at high speed, and create vacuum pressure and suction by a rotating motor fan. Motors are suitable for scrubbers, carpet extraction, paint sprayers and other wet pickup applications because debris and moisture will not contact the motor windings directly. They are not designed to pump water.
