DAYTON

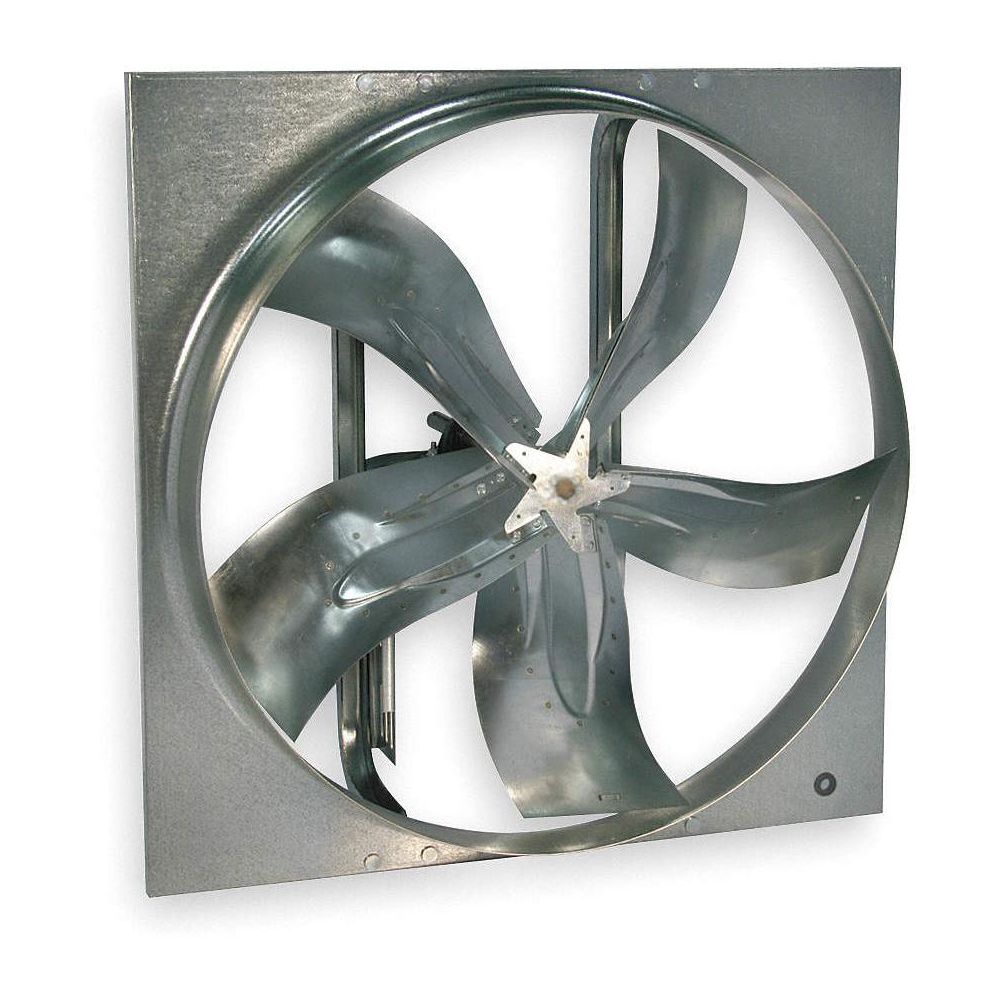

Dayton 30"-Dia. Exhaust Fan, Medium Duty Belt Drive Less Drive Package

Hover over image to magnify
Exhaust Fan, 30 In,Less Drive
Exhaust Fan, 30 In,Less Drive
Dayton 30"-Dia. Exhaust Fan, Medium Duty Belt Drive Less Drive Package Video

#914140-3 | Pkg Qty: 1

$919.27 pkg | $919.27 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Regreasable Pillow Block
Mounting Position
Horizontal or Vertical
Blade Diameter
30 in.
Number of Blades
5
Blade Material
Steel
Package Quantity
1
Brand
DAYTON
Shaft Diameter
1 in.
Height
34 in.
Shipping Weight
69 lb.
Item
Exhaust Fan
Width
34 in.
Mfr. Part Number
1AHA2
General
Assembled
Unassembled
For Motor Horsepower (Motor Sold Separately)
1/2 hp to 2 hp
Bearing Size
1 in
For Motor Speed (Motor Sold Separately)
594 RPM to 936 RPM
Blade Finish
Galvanized
Includes Motor
No
Fan Style
Panel
Manufacturer Warranty Length
1 yr
Flange Depth
1 1/4 in
Maximum Airflow
15,488 cfm
For Air Flow (Dependent on Motor)
9,829 cfm to 15,488 cfm
Maximum Ambient Operating Temperature
104 Degrees F
For Cut-Out Diameter
32 1/2 in
Maximum Inlet Temperature
104 Degrees F
For Cut-Out Height
32 1/2 in
Maximum Static Pressure
0.75 in wg
For Cut-Out Width
32 1/2 in
Minimum Airflow
9,829 cfm
For Maximum Motor Horsepower
2 hp
Square Opening Required
Greater than 30 in
For Maximum Motor Speed
936 RPM
Ventilation Type
Exhaust
For Minimum Motor Horsepower
1/2 hp
Venturi Depth
5 1/4 in
For Minimum Motor Speed
594 RPM
Venturi Diameter
30 3/8 in

Product Description

This fan is designed for commercial and industrial applications requiring a high volume of air at low static pressures. It features heavy-duty drive frame rails, bearing plate, and motor plate. The 5-blade galvanized steel propeller provides low sound levels. A variable pitch, adjustable motor pulley optimizes fan performance.
