HOSE MASTER

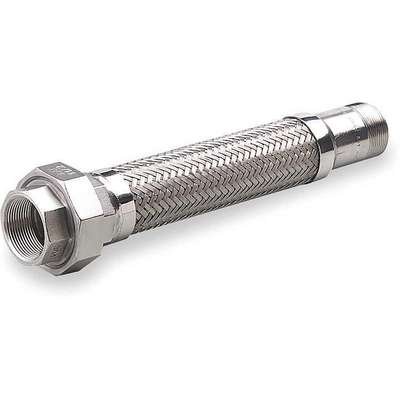

Flexible Metal Hose Assembly: 1 in Hose Inside Dia., 9 in Dynamic Min. Bend Radius (In.), MNPT, FNPT

Hover over image to magnify
Flexible Metal Hose,Dia 1 In
PI_Asset_927287
Flexible Metal Hose,Dia 1 In
PI_Asset_927287

#914119-1 | Pkg Qty: 1

$130.69 pkg | $130.69 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Braid Material
Stainless Steel
Item
Flexible Metal Hose
Brand
HOSE MASTER
Length
18 in.
Diameter
1 in.
Mfr. Part Number
G100SMU180
Fitting Type
304 Stainless Steel MNPT x 150 lb 304 Stainless Steel FNPT Union
Package Quantity
1
Hose Material
Stainless Steel
Shipping Weight
1.65 lb.
General
Compatible Chemicals
Motor Oil
Hose Fitting B Type
FNPT
Fitting Material
304 Stainless Steel x 304 Stainless Steel
Hose Fittings
304 Stainless Steel 1 in MNPT x 304 Stainless Steel 1 in FNPT
For Media Type
Motor Oil
Hose Tube Material
321 Stainless Steel
Hose Cover Material
304 Stainless Steel
Max. Working Pressure @ 70 F
718 psi
Hose Fitting A Material
304 Stainless Steel
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Hydrazine, Sodium Bisulfate, Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Hose Fitting A Type
MNPT
Temp. Range
-325 Degrees to 1200 Degrees F
Hose Fitting B Material
304 Stainless Steel

Product Description

These corrugated metal hoses have a 321 stainless-steel inner hose and a 304 stainless-steel braided cover. 321 stainless steel can withstand very high temperatures. It has high strength, resists scaling, and provides phase stability with resistance to subsequent aqueous corrosion. 304 stainless steel can be sanitized. It can withstand corrosion from most oxidizing acids but is susceptible to corrosion from chloride solutions or from high-saline environments like coastal regions.

Corrugated metal hoses (also known as jacketed hoses) are ideal for conveying products that need to be heated or cooled during transfer. They are used in asphalt and hot-mix plants and the food, beverage, cosmetic, and pharmaceutical industries. These hoses consist of a flexible inner metal hose enclosed in a flexible metal outer hose (or jacket). Fittings on the ends of these hoses prevent any material that is being conveyed through the inner or outer hose from moving into the other hose. This allows the inner and outer hoses to be used to convey different materials. For example, steam or hot oils can be circulated through the outer hose to keep viscous material in the inner hose warm and fluid.
