GEARWRENCH

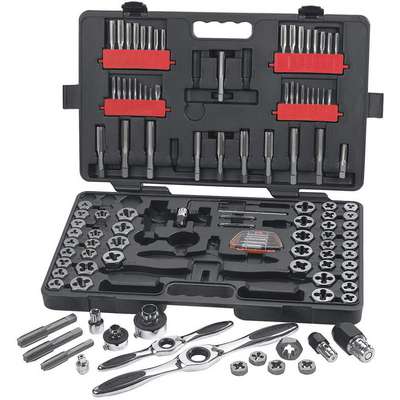

114-Piece Carbon Steel Tap and Die Set with #4 to 3/4", M3 to M18 Size Range
Hover over image to magnify
#914112 | Pkg Qty: 1
$550.19 pkg | $550.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
GEARWRENCH
Package Quantity
1
Die Material
High Speed Steel
SAE or Metric
SAE, Metric
Die Shape
Hex
Shipping Weight
17.95 lb.
Dimension Type
Fractional, Machine, Metric
Sizes Included
#4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4 in.-20, 1/4 in.-28, 5/16 in.-18, 5/16 in.-24, 3/8 in.-16, 3/8 in.-24, 7/16 in.-14, 7/16 in.-20, 1/2 in.-13, 1/2 in.-20, 9/16 in.-12, 9/16 in.-18, 5/8 in.-11, 5/8 in.-18, 3/4 in.-10, 3/4 in.-16, M3x0.5, M3x0.6, M4x0.7, M4x0.75, M5x0.8, M5x0.9, M6x0.1, M7x0.1, M8x1.25, M9x1, M9x1.25, M10x1.25, M10x1.5, M11x1.5, M12x1.5, M12x 1.75, M14x1.25, M14x2, M16x1.5, M16x2, M18x1.5, M18x2.5, 1/8 in.-27 NPT, 1/4 in.-18 NPT, 1/8 in.-28 BSP, 1/4 in.-19 BSP
Finish
Uncoated
Tap Chamfer
Plug, Taper
Item
Tap and Die Set
Tap Dimension Type
Inch, Machine, Metric
Left/Right Hand
Right Hand
Tap Finish
Bright (Uncoated)
Material
Carbon Steel
Tap Material
High Speed Steel
Meets
ASME/ANSI B94.9-1999
Tap Size
#4 to 3/4 in., M3 to M18
Mfr. Part Number
82812
Thread Direction
Right Hand
Number of Pieces
114
Type
Fractional/Metric, Ratcheting
General
Case Type
Plastic
Min. Bore Dia.
3mm x 0.50 NC
Die Finish
Bright (Uncoated)
Min. Tap Thread Size
M3x0.5
Die Material Grade
Carbon Steel
Number Of Taps
48
Die Type
5/8 in and 1 in Hex
Number of Dies in Set
48
Features
Auto-Locking, Eliminate Hand-Over-Hand Turning, Spring-Loaded Cap, Twist Lock Guide System Reduces The in. Walk Back in.
Standards
ASME/ANSI B94.9-1999
Includes
Large And Medium Ratcheting T-Handle Wrenches, 3 Tap Adapters, Medium And Large Die Adapters, Male And Female Extension Adapters, Sliding-T for Adapters, 4mm Hex Key, 5 Screw Extractors, Thread Gauge, Plastic Case
Thread Pitch
0.50mm , 0.60mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm, 1.25mm, 1.50mm, 1.75mm
Max. Die Thread Size
M18x2.5
Thread Sizes Included
1/2-13, 1/2-20, 1/4-18NPT, 1/4-19BSP, 1/4-20, 1/4-28, 1/8-27NPT, 1/8-28 BSP, 10-24, 10-32, 12-24, 3/4-10, 3/4-16, 3/8-16, 3/8-24, 4-40, 5/16-18, 5/16-24, 5/8-11, 5/8-18, 6-32, 7/16-14, 7/16-20, 8-32, 9/16-12, 9/16-18, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.25, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M3 x 0.50, M3 x 0.60, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25
Max. Tap Thread Size
M18x2.50
Thread Standard
Metric, SAE
Measurement System
Fractional Inch, Metric
Threads per Inch
13, 14, 16, 18, 19, 20, 24, 27, 28, 32, 40
Product Description
The taps and dies in these sets are made from carbon steel. They are an economical choice for internal- and external-threading applications in maintenance operations.
Item Barcode
Tap/Die Set,Carbon,114 Pc,#4-3/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3KLR6 | Tap/Die Set, Carbon,114 |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Tap/Die Set, Carbon,114 |
