DBI-SALA

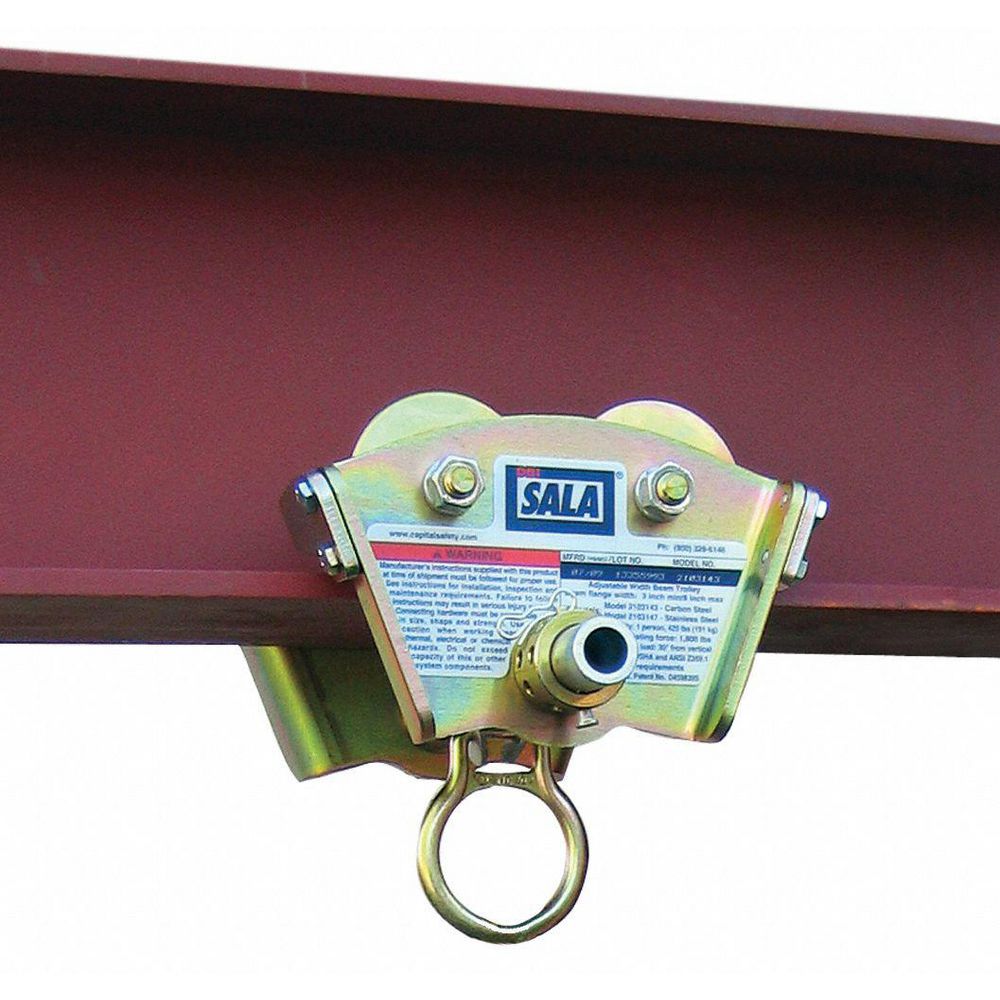

Dbi-Sala Beam Trolley: 310 lb Wt Capacity, For 3 in to 8 in Flange Wd Range, Swivel D-Ring, Steel

Hover over image to magnify
Beam Trolley,Temporary,3-8 In
PI_Asset_2107591
PI_Asset_2107592
Beam Trolley,Temporary,3-8 In
PI_Asset_2107591
PI_Asset_2107592

#914035-4 | Pkg Qty: 1

$748.36 pkg | $748.36 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DBI-SALA
Mfr. Part Number
2103143
Depth
8-1/2 in.
Package Quantity
1
Fits Beam Size
3 in. to 8 in. dia.
Ring Diameter
1 in.
Installation Method
Temporary
Shipping Weight
14.68 lb.
Item
Beam Trolley
Tensile Strength
5000 lb.
Length
11-2/3 in.
Weight Capacity
310 lb.
Material
Carbon Steel Construction
Width
8-3/4 in.
General
Adjustment Style
Dials
For Max. Flange Thickness
0.6875 in
Anchor Installation
Reusable
For Max. Flange Width
8 in
Anchor Performance
General Purpose
For Min. Flange Width
3 in
Anchor Style
Trolley
For Use With
Lifeline System
Anchorage
15 lb.
Hook Max. Opening
8"
Attachment Point
Swivel D-Ring
Ring Dia.
1 in
Beam Clamp Style
Sliding
Sliding Mechanism
Wheels
For Flange Width Range
3 in to 8 in
Standards
OSHA, ANSI Z359

Product Description

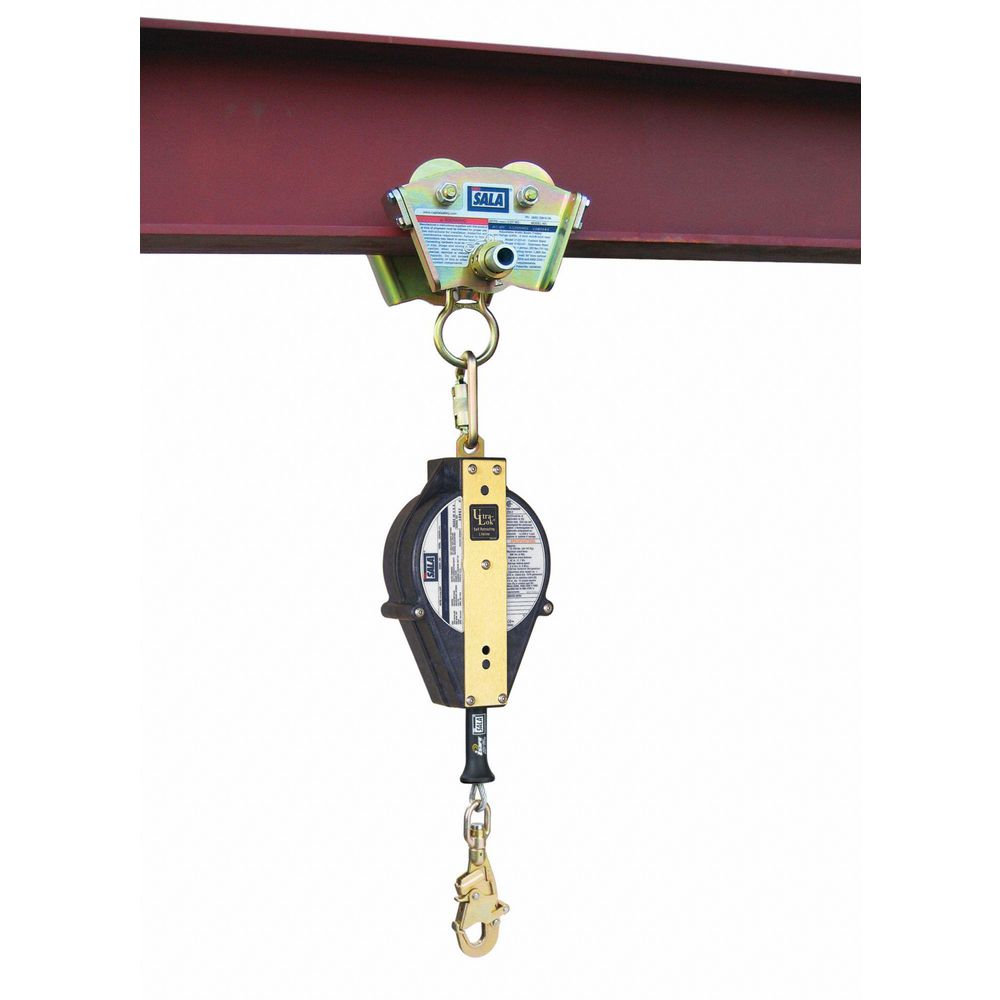

This lightweight I-beam trolley is designed for use with self-retracting lifelines on horizontal beams as part of a personal fall arrest system. DBI-SALA® engineered it for superior performance, with maintenance-free noncorrosive double-shielded wheel bearings and guards to protect the wheels from damage and keep the beam clear of debris. The trolley represents the “A” in the ABCs of fall protection. Complete the system with body support and a connecting device. And remember to add “D” for components that help with the descent, rescue, and retrieval of someone who has fallen. All are available at ImperialSupplies.com®, where we offer a huge selection of fall protection products. DBI-SALA rigorously tests each anchorage connector to meet or exceed OSHA and ANSI standards.
