PARKER

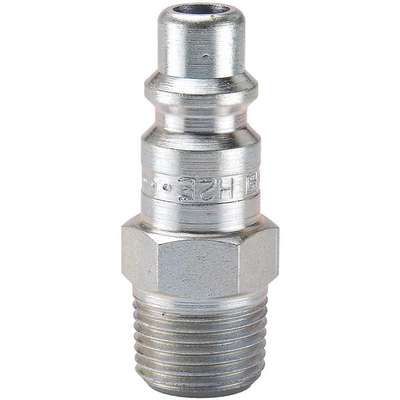

Quick Connect Hose Coupling: 1/4 in Body Size, 3/8 in Hose Fitting Size, 3/8"-18 Thread Size

Hover over image to magnify
Quick Coupling Male Nipple,3/8
PI_Asset_1366456
Quick Coupling Male Nipple,3/8
PI_Asset_1366456

#914003-3 | Pkg Qty: 1

$5.87 pkg | $5.87 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Maximum Flow
25 cfm
Body Size
1/4 in.
Maximum Pressure
300 psi
Brand
PARKER
Mfr. Part Number
H2C-E
Connection Size
3/8 in.
Package Quantity
1
Finish
Trivalent Chrome
Pipe Size
3/8 in.
Hose Connection
(M)NPT
Quick Connect Coupling Interchange
Industrial
Item
Coupler Plug
Shipping Weight
.1 lb.
Material
Steel
Type
Industrial Interchange
General
Application
Pneumatic
Material - Quick Connect Air Couplings
Steel
Barbed
No
Max. Air Flow (SCFM)
25
Body Size - Quick Connect Air Couplings
1/4 in
Max. Outside Dia.
51/64 in
Coupling Component
Plug
Max. Pressure - Quick Connect Air Couplings
300 psi
Hose Connection - Quick Connect Air Couplings
(M)NPT
Max. Working Pressure @ 70 F
300 psi
Hose Fitting Gender
Male
Pipe Size - Quick Connect Air Couplings
3/8"
Includes Valve
No
Product Grouping - Quick Connect Air Couplings
Quick Coupler Plug
Interchange Type - Quick Connect Air Couplings
Industrial

Product Description

Industrial interchange steel quick-connect air coupling plugs are the male end of coupling sets. Also called nipples, they're inserted into the coupling bodies (female ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Steel couplings are hard and resilient with more damage resistance than softer metals and a wide working temperature range.
