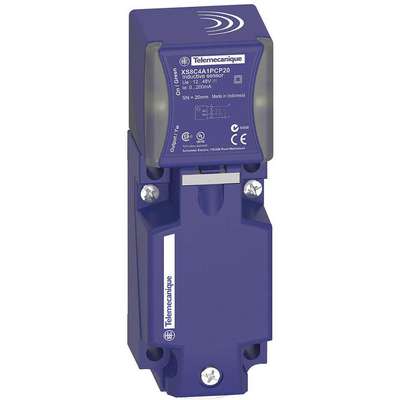

300 Hz Shielded Rectangular Proximity Sensor; 40mm x 117mm x 40mm

300 Hz Shielded Rectangular Proximity Sensor; 40mm x 117mm x 40mm

#913929-9 | Pkg Qty: 1

$243.60 pkg | $243.60 ea
Item Number 913929-9
Scanner Description Proximity Sensor,Inductive,
Inventory Status Drop Ship Item
Weight 0.53 lb
Brand TELEMECANIQUE SENSORS

Technical Specifications

Basic Material
Plastic
Output Mode
NO/NC
Basic Proximity Sensor Case Material
Plastic
Pack Quantity
1
Brand
TELEMECANIQUE SENSORS
Power Requirement
24 to 240VAC/DC
Case
Plastic
Proximity Sensing Method
Inductive
Case Material
Plastic
Proximity Sensor Electrical Connection
Screw Clamp Terminal
Circuit Type
2 Wire
Proximity Sensor Operating Frequency
300 Hz
Connector Type
1/2 in. NPT
Proximity Sensor Output Circuit Type
2 Wire
Depth
40 mm
Proximity Sensor Power Requirement
24 to 240VAC/DC
Detecting Distance
20mm
Proximity Sensor Style
Rectangular Proximity Sensor
Electrical Connection
Screw Clamp Terminal
Sensing Method
Inductive
IP Rating
65, 67, 69K
Sensor Type
Inductive
Item
Rectangular Proximity Sensor
Shield
Shielded
Length
4.6 in.
Shielded/Unshielded
Shielded
Material of Construction
PBT
Standards
UL Listed, CSA Certified, CE Compliance, CCC, RoHS, REACh
Maximum Current Load
300/200mA
Temperature Range
-13° to 158°
Maximum Detecting Distance
20 mm
Type
Limit Switch Style
Mfr. Part Number
XS8C4A1MPN12
Voltage Range
24-240VAC
NEMA Type
IP65, IP67, IP69K
Voltage Type
AC/DC
Operating Frequency
300 Hz
Width
40 mm
Operating Temperature Range
-13° to 158°F

Product Description

This inductive proximity sensor is engineered for non-contact sensing of metal objects up to 60mm. Use in assembly machines, robotics, machine tools, packaging, materials handling, conveying, and food and beverage processing.

Item Barcode
9139299
  Name Item Description
Grainger Dropship Grainger Dropship 32J308 Proximity Sensor,
UNSPSC CODES UNSPSC CODES 41111926
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 Proximity Sensor,
