GRAYMILLS

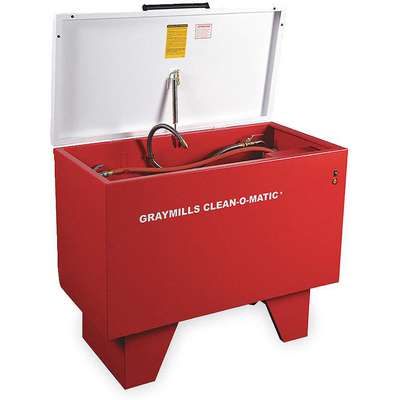

Graymills Solvent Parts Washer: 42 gal Tank Capacity, 500 lb Load Capacity

Hover over image to magnify
Parts Washer,Solvent,42 Gal,
Parts Washer,Solvent,42 Gal,

#913921-7 | Pkg Qty: 1

Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
GRAYMILLS
Package Quantity
1
Capacity
42 gal.
Parts Washer Mount Type
Base Mounted Parts Washers
Construction
Mild Steel
Pump Size
2,400 gph
Filtration
Yes
Series
Clean-O-Matic
For Solution Base Type
Solvent-Based
Shipping Weight
241 lb.
Horsepower
3333/10000 hp
Solution Type
Solvent-Based
Item
Solvent Parts Washer
Tank Capacity
42 gal.
Load Capacity
500 lb.
Tank Height
23 in.
Maximum Operating Temperature
105 deg. F
Tank Length
32 in.
Mfr. Part Number
COM504-A
Tank Material
Steel
Minimum Operating Temperature
60 deg. F
Tank Width
21 in.
Nominal Tank Depth
10 in.
Temperature Range
Ambient Only
Overall Height
37 in.
Type
16 Gauge Steel Work Stand
Overall Length
44 in.
Voltage
115 V
Overall Width
22 in.
General
For Use With
12Y139, 2RE49, 2W352
Work Light
No
Standards
cETLus Certified

Product Description

The GRAYMILLS Clean-O-Matic™ parts washer, or soak tank, provides 3-way cleaning action delivered by directed steam, flush hose, or in-tank agitation. Use for medium- to heavy-duty cleaning applications.

  • Includes filtration system, powerful 2400 gem cast-iron centrifugal pump, bilevel work shelves, casters, and spring-loaded fusible safety lid.
  • Complies with most freeboard compliance regulations.

Expertly Selected Product Pairings

Solvent Filter, 18H X 7W
$204.58 pkg | $204.58 ea
Item: 911558-4 | Pkg Qty: 1
Solvent,Cleaning,5 Gal
$228.06 pkg | $228.06 ea
Item: 911900-5 | Pkg Qty: 1
Cleaning Solvent, 5 Gal.
$249.91 pkg | $249.91 ea
Item: 911915-7 | Pkg Qty: 1
Solvent,Cleaning,5 G
$228.24 pkg | $228.24 ea
Item: 912123-7 | Pkg Qty: 1
Solvent Filter,11Hx7W In
$180.90 pkg | $180.90 ea
Item: 913507-7 | Pkg Qty: 1
Link Assy
$414.40 pkg | $414.40 ea
Item: 928472-9 | Pkg Qty: 1
Hose-3 Ft.,1/2 In Id., 7/8in
$73.29 pkg | $73.29 ea
Item: 935751-7 | Pkg Qty: 1
On/Off Switch
$27.76 pkg | $27.76 ea
Item: 937514-4 | Pkg Qty: 1
Fire Link Assy
$48.83 pkg | $48.83 ea
Item: 938875-9 | Pkg Qty: 1
Fusible Link
$25.52 pkg | $25.52 ea
Item: 941246-4 | Pkg Qty: 1
Flex Hose
$195.28 pkg | $195.28 ea
Item: 941248-3 | Pkg Qty: 1
Nozzle
$55.89 pkg | $55.89 ea
Item: 941248-4 | Pkg Qty: 1
Screen Cylinder L-4 1/8in Od-
$38.57 pkg | $38.57 ea
Item: 941248-5 | Pkg Qty: 1
Sleeve
$18.39 pkg | $18.39 ea
Item: 941249-3 | Pkg Qty: 1
Cover Gasket
$20.36 pkg | $20.36 ea
Item: 941250-1 | Pkg Qty: 1
Gasket
$15.13 pkg | $15.13 ea
Item: 941251 | Pkg Qty: 1
Sludge Screen (need Two Per
$127.23 pkg | $127.23 ea
Item: 941252-5 | Pkg Qty: 1
Bolt
$6.89 pkg | $6.89 ea
Item: 941252-7 | Pkg Qty: 1
Impeller
$133.46 pkg | $133.46 ea
Item: 941253-3 | Pkg Qty: 1
Coupling
$87.36 pkg | $87.36 ea
Item: 941255-4 | Pkg Qty: 1
Foam Filter
$16.55 pkg | $16.55 ea
Item: 941256-8 | Pkg Qty: 1
