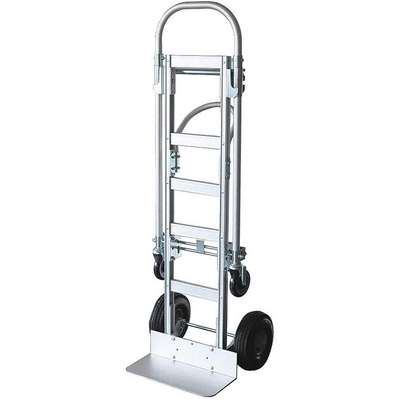

Convertible Hand Truck, 1000 lb./500 lb. Horixontal/Vertical Load Cap., Continuous Frame Dual Pin

Hover over image to magnify
Convertible Hand Truck,Height
PI_Asset_1763762
PI_Asset_1769859
Convertible Hand Truck,Height
PI_Asset_1763762
PI_Asset_1769859

#913882-9 | Pkg Qty: 1

$306.70 pkg | $306.70 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Overall Depth
19 in.
Color Family
Gray
Overall Height
62-3/4 in.
Hand Truck Handle Type
Continuous Frame Dual Pin
Overall Width
21-1/4 in.
Hand Trucks Group
Convertible Hand Trucks
Package Quantity
1
Horizontal Load Capacity
1000 lb.
Shipping Weight
38.9 lb.
Item
Convertible Hand Truck
Vertical Load Capacity
500 lb.
Material
Aluminum
Wheel Bearings
Ball
Mfr. Part Number
21U664
Wheel Diameter
10 in.
Noseplate Depth
8-1/4 in.
Wheel Type
Pneumatic
Noseplate Width
18 in.
Wheel Width
3-1/2 in.
General
Assembled
Yes
Includes Lever Pushoff
Without Lever Pushoff
Axle Dia.
5/8 in
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Bearings
Ball Bearing
Includes Wheel Fenders
With Wheel Fenders
Axle-Mounted Wheel Dia.
10 in
Load Capacity as Hand Truck
500 lb
Axle-Mounted Wheel Type
Pneumatic
Load Capacity as Platform Truck
1,000 lb
Axle-Mounted Wheel Type/Material
Pneumatic Rubber
Non-Marking Axle-Mounted Wheels
No
Axle-Mounted Wheel Width
2 in
Non-Marking Casters/Wheels
No
Axle-Mounted Wheel/Tread Material
Rubber
Nose Plate Depth
8 1/4 in
Brake Type
No Caster Brake
Nose Plate Material
Aluminum
Caster Frame Material
Steel
Nose Plate Profile
Standard
Caster Stem Diameter
3/8 in
Nose Plate Thickness
7/32 in
Caster Stem Length
3/4 in
Nose Plate Type
Solid Straight
Caster Wheel Dia.
5 in
Nose Plate Width
18 in
Caster Wheel Width
1 in
Nose Plate WxD
18 in x 8 1/4
Caster/Wheel Configuration
(2) Swivel, (2) Axle-Mounted
Overall Depth as Hand Truck
19 1/2 in
Caster/Wheel Mounting Location
Standard
Overall Height as Hand Truck
61 1/2 in
Features
4-1 Quick Change Convertible
Overall HxWxD - Hand Truck
61 1/2 in x 21 in x 19 1/2 in
For Surface Type
All Surface Types
Overall Width as Hand Truck
21 in
Frame Gauge
16 ga
Platform LxWxH
48 1/2 in x 12 in x 11 in
Horizontal Load Cap.
1,000 lb
Platform Size
48-1/2 in x 12 in
Hub Position
Center Mount
Vertical Load Cap.
500 lb
Includes Foot Assist
Without Foot Assist

Product Description

Two-position aluminum convertible hand trucks weigh less than steel hand trucks and resist rusting when used in damp or wet environments. They can be used as an upright two-wheel hand truck or a horizontal four-wheel platform truck. These modular hand trucks allow users to replace parts of the hand trucks as they become worn or damaged, making them easier to maintain than non-modular hand trucks with a welded frame and nose plate.
