DAYTON

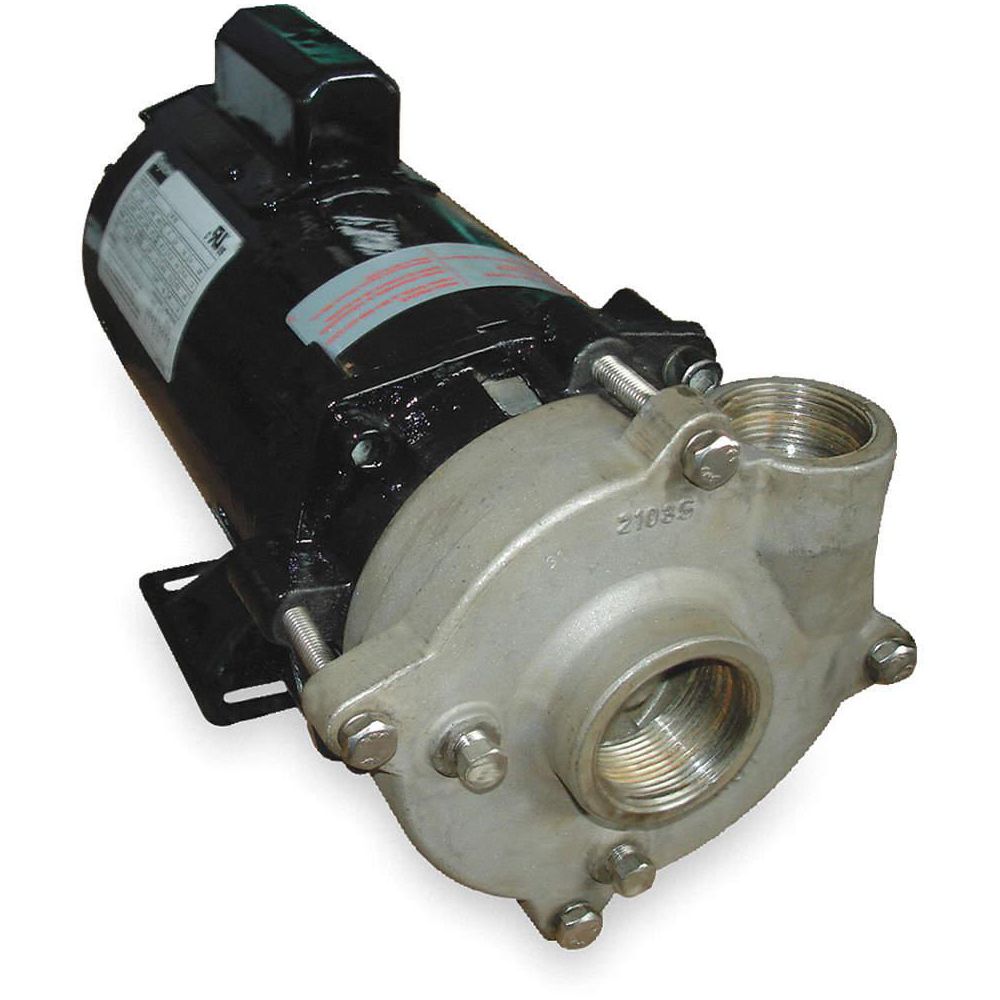

Centrifugal Pump: 1 1/2 hp, 115/208-230V AC, 67 ft Max Head, 1 1/2 in , 1 1/4 in Intake and Disch
Hover over image to magnify
#913862 | Pkg Qty: 1
$876.57 pkg | $876.57 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c UL us
Maximum GPM @ Head
115 gpm @ 10 ft.
Amps
17/9.0-6.4
Maximum Head
67
Bearing Type
Ball
Maximum Liquid Temperature
200°F
Bearings
Ball
Maximum Pressure
29.00 psi
Best Efficiency GPM @ Head
72 gpm @ 44 ft.
Maximum Specific Gravity
1
Best Efficiency Range GPM @ Head
55 to 99 GPM @ 55 to 25 ft.
Mfr. Part Number
2ZWU6
Brand
DAYTON
Mfr. Warranty Length
1 yr.
Drain Plug
Easily Accessible, 2 Position
Minimum GPM @ Head
40 gpm @ 60 ft.
Duty
Continuous
Motor Enclosure
ODP
Duty Cycle
Continuous
Motor RPM
3450
Frame
56J
Motor Type
Capacitor Start
GPM of Water @ 10 Ft. of Head
115
NEMA/IEC Frame
56J
GPM of Water @ 15 Ft. of Head
109
Number of Port Positions
4 Position
GPM of Water @ 150 Ft. of Head
109
Outlet Size
1-1/4 in. NPT
GPM of Water @ 20 Ft. of Head
104
Package Quantity
1
GPM of Water @ 25 Ft. of Head
99
Phase
1
GPM of Water @ 30 Ft. of Head
94
Port Rotation
4 Position Increments
GPM of Water @ 40 Ft. of Head
81
Pump Height
6 in.
GPM of Water @ 50 Ft. of Head
64
Pump Length
15 in.
GPM of Water @ 60 Ft. of Head
40
Pump Size
1-1/2 in. X 1-1/4
Height
6 in.
Screw Material
Stainless Steel
Horsepower
1-1/2
Seal Application
Long Life When not Run Dry or Pumping Abrasives
Housing Material
Stainless Steel
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Hz
60
Seal Type
Mechanical
Impeller Material
Stainless Steel
Service Factor
1.3
Impeller Type
Semi Open
Shaft Material
Stainless Steel
Inlet
1-1/2 in. NPT
Shaft Size
5/8 in.
Inlet Pressure
200 psi
Shipping Weight
52.8 lb.
Item
Straight Centrifugal High Flow Pump
Type
Centrifugal
Length
15 in.
Voltage
120/208 to 240 VAC
Liquid Compatibility
Nonflammable, Non Abrasive
Volute Material
Stainless Steel
Maximum Case Pressure
200 psi
Warranty
2ACD2
Maximum Diameter Solids
1/2 in.
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
Maximum Fluid Viscosity
100 SSU
Width
7-1/8 in.
General
Application
Suitable for general transfer, boiler feed, condensate return, water circulation, irrigation, cooling towers, filtration, and pressure boosting.
Impeller Design
Semi-Open
Best Efficiency Flow
72 gpm
Includes
Manual
Best Efficiency Head
44 ft
Intake Type
NPT
Compatible Discharge Pipe Size
1 1/4 in
Intake and Discharge Size
1 1/2 in , 1 1/4 in
Compatible Intake Pipe Size
1 1/2 in
Manufacturer Warranty Length
1 yr
Compatible with Media Type
Non-Flammable Liquids
Maximum Feet of Head
67 ft
Discharge Rotation
90 Degrees Increments
Maximum Media Temperature
200 Degrees F
Discharge Type
NPT
Minimum Media Temperature
40 Degrees F
Feet of Head (Minimum)
10 ft
Motor Enclosure Type
ODP
Flow Rate @ 10 ft of Head (Maximum)
115 gpm
Motor Frame Designation
56J
Flow Rate @ 15 ft of Head (Maximum)
109 gpm
Nameplate Voltage
115/208-230V AC
Flow Rate @ 20 ft of Head (Maximum)
104 gpm
Nominal Voltage
115/208-230V AC
Flow Rate @ 30 ft of Head (Maximum)
94 gpm
Pump Housing Material
Stainless Steel
Flow Rate @ 40 ft of Head (Maximum)
81 gpm
Pumping Application
Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
Flow Rate @ 50 ft of Head (Maximum)
64 gpm
Shut Off Pressure (Maximum)
29 psi
Flow Rate @ 60 ft of Head (Maximum)
40 gpm
Solid Diameter (Maximum)
0.5 in
For Use With
Non-Flammable and Non-Abrasive Liquids Compatible with Pump Component Materials
Specific Gravity (Maximum)
1
For Use With Potable Systems
No
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Product Description
Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
