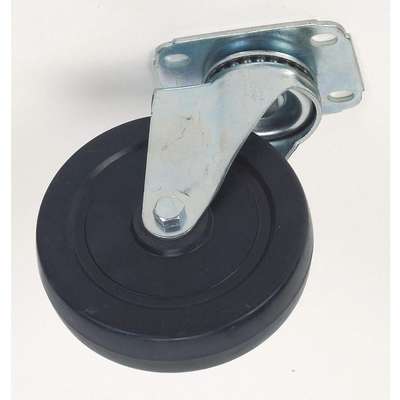

Light Duty, Swivel NSF-Listed Sanitary Plate Caster; 165 lb. Load Rating, 4" Wheel Dia.

Hover over image to magnify
Swivel Plate Caster,165 Lb,4
PI_Asset_947820
Swivel Plate Caster,165 Lb,4
PI_Asset_947820

#913859 | Pkg Qty: 1

$17.12 pkg | $17.12 ea

Loading Stock Status...

Item Number 913859
Scanner Description Swivel Plate Caster,165 Lb,4
Inventory Status Drop Ship Item
Weight 2.08 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Item
NSF-Listed Sanitary Plate Caster
Caster Brake Included
No
Load Rating
165 lb.
Caster Brake Type
No Brake Included
Mfr. Part Number
4W906
Caster Core Material
Rubber
Mounting Bolt Diameter
5/16 in.
Caster Load Rating Range
Light Duty
Mounting Height
5-1/8 in.

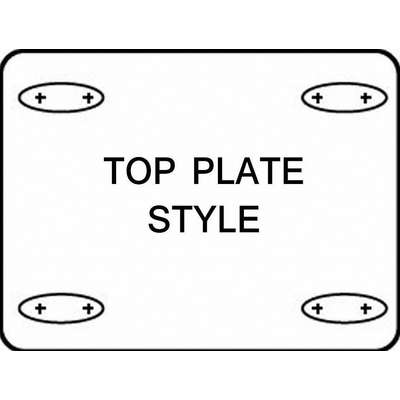

Caster Plate Hole Pattern
C
Non-Marking
No
Caster Plate Size
2-1/2 in. x 3-5/8 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-3/4 in. x 3-1/16 in.
Caster Wheel Bearings
Delrin
Pack Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Swivel
Caster Wheel/Tread Material
Rubber
Replacement Wheel
1KA93
Core Color
Black
Standards
NSF Listed
Durometer
85 Shore A
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Wheel Color
Black
Frame Material
Steel
Wheel Diameter
4 in.
Includes Thread Guards
No
Wheel Width
1-1/4 in.
Inside Bolt Hole Spacing
1-3/4 in. x 2-13/16 in.
Wheel/Tread Hardness Rating
Soft

Product Description

Light-duty NSF-listed sanitary plate casters have double ball swivel bearings and swivel more smoothly than economy light-duty NSF-listed sanitary plate casters. They are suitable for use on carts, prep tables, food-service equipment, racks, and other equipment used in food-service areas, food-manufacturing facilities, and similar environments where the casters will be transporting relatively light loads over smooth, flat surfaces. Sometimes known as institutional plate casters, these light-duty plate casters have zinc-plated or nickel-plated steel frames.

NSF-listed sanitary plate casters are built to satisfy the National Sanitation Foundation's (NSF) rigorous testing requirements for casters that are used in environments where they will be exposed to frequent washdowns, oils, or chemicals. They are suitable for use in environments where sanitary conditions must be maintained. These casters have a mounting plate that installs onto the bottom of carts, prep tables, food-service equipment, racks, and similar items. They are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
