AIR HANDLER

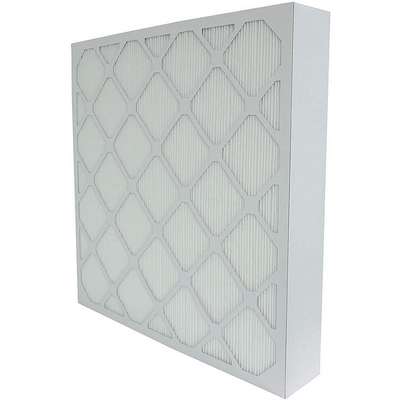

Air Handler Mini-Pleat Air Filter: 24x24x4 Nominal Filter Size, Fiberglass, Beverage Board, MERV 14

Hover over image to magnify
Economy Minipleat Filter,
Economy Minipleat Filter,

#913831-9 | Pkg Qty: 2

$266.30 pkg | $133.15 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actual Depth
3-5/8 in.
Material
Fiberglass
Actual Height
23-3/8 in.
Maximum Temperature
150 deg. F
Actual Width
23-3/8 in.
Mfr. Part Number
6B590
Air Flow
500 fpm
Nominal Depth
4 in.
Brand
AIR HANDLER
Nominal Height
24 in.
Filter Efficiency
90% to 95%
Nominal Width
24 in.
Item
Mini-Pleat Air Filter
Package Quantity
2
MERV
14
Shipping Weight
15.4 lb.
General
Actual Filter Size
23-3/8 in x 23-3/8 in x 3-3/4 in
Media Material
Fiberglass
Air Filter Header Type
No Header
Media Separator Construction
Glue
Filter Efficiency - Air Filters
90% to 95%
Nominal Filter Size
24x24x4
Frame or Header Material
Beverage Board
Performance Rating
MERV 14
Initial Resistance @ 500 fpm
0.68 in wc
Standards
UL 900
Max. Velocity
625 fpm
Style - Air Filters
Box

Product Description

MERV 14 minipleat air filters provide between 90% and 95% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 85% and 90% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and between 50% and 75% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 13 minipleat air filters.

Minipleat air filters have tightly pleated filter media that traps particles with high efficiency. They are lighter and hold more dust than rigid cell or cartridge air filters, and their rigid frame can withstand difficult operating conditions such as variable air volume, turbulent airflow, and high humidity. Minipleat filters are commonly installed in HVAC systems in offices, hospitals, museums, electronics manufacturing, and similar settings to remove contaminants from the air stream and increase indoor air quality. They also stop contaminants from building up in the equipment and damaging it. These filters have a MERV (minimum efficiency reporting value) rating of 11 to 14. A filter's MERV rating measures how efficiently it removes contaminants from the air stream based on the size of the particles it can effectively capture. The higher a filter's MERV rating is, the more effectively the filter traps small particles.
