DAYTON

Hand Operated Drum Pump: Piston, 5 gal_15 gal_30 gal_55 gal For Container Size, Packing-NBR

Hover over image to magnify

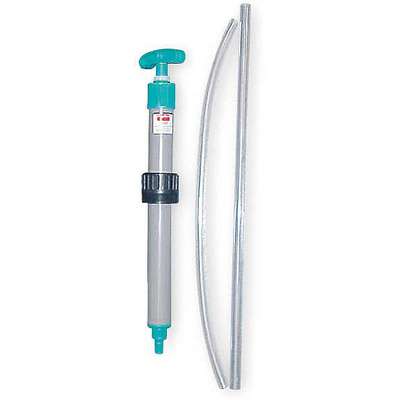

Drum Pump, Piston, 8oz
Drum Pump, Piston, 8oz

#913830-3 | Pkg Qty: 1

$25.48 pkg | $25.48 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action Type
Piston
Mfr. Part Number
3BY43
Adapter Diameter
3/4 in. and 2 in.
Ounces per Stroke
8 oz.
Adapter Material
Polypropylene
Outlet Size
5/8" OD
Adapter Type
Drum
Overall Length
40 in.
Brand
DAYTON
Package Quantity
1
Discharge Tube Length
22"
Piston
Viton
Discharge Tube Outlet ID Size
1/2"
Piston Material
Viton
Discharge Tube Outlet Outside Diameter
5/8"
Power Source
Hand Operated
Discharge Tubing Material
PVC
Pump Body Material
PVC
Fits
2" Drum Opening
Seal
Packing-NBR
For Use On
5, 15, 30, and 55 gal. Drums
Seal Material
Packing-NBR
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Self-Priming
Yes
Housing Material
PVC
Shipping Weight
.9 lb.
Inlet Size
1"
Suction Pipe Size
1/2 in. ID,5/8 in. OD
Item
Hand Operated Drum Pump
Suction Tube Length
23 in.
Maximum Liquid Temperature
140°F
Suction Tube Outlet Outside Diameter
5/8 in.
Maximum Viscosity
4000 SSU
Type
Piston Action
Metered
No
Wetted Materials
Glass, PVC, Viton
General
Application
Degreasers, Floor Cleaners, Glass Cleaners, Chlorines
Includes
BUNG
Bung Connection Dia.
2 in, 3/4 in
Includes Bung Adapter
Yes
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Kerosene, Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Discharge Hose
Yes
Discharge Tube Outlet ID
1/2 in
Includes Nozzle
No
Discharge Tube Outlet OD
5/8 in
Includes Suction Tube
Yes
For Container Size
5 gal, 15 gal, 30 gal, 55 gal
Max. Flow Rate
8 oz per stroke
For Container Type
Bucket, Drum, Pail
Max. Fluid Temp.
140 Degrees F
For Media Type
Antifreeze, Automatic Transmission Fluid, Bleach, DEF, Diesel Fuel, Ethanol, Kerosene, Water
Not Recommended Chemicals
Methyl Ethyl Ketone (MEK)
For Use With
Chlorines, Degreasers, Floor Cleaners, Glass Cleaners
Pump Package Type
Basic Pump with Discharge Hose
Housing Material - Pumps
PVC
Suction Tube OD
5/8 in

Product Description

Diesel exhaust fluid (DEF) hand drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring small volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
