DAYTON

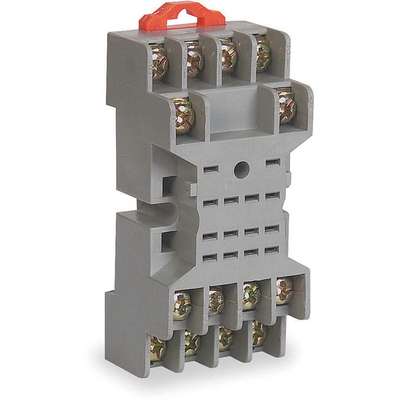

Dayton Relay Socket, Socket Type: Standard, Socket Style: Square, Number of Pins: 14

Hover over image to magnify
Socket,Relay,14 Pins
PI_Asset_928969
Socket,Relay,14 Pins
PI_Asset_928969

#913825-9 | Pkg Qty: 1

$22.80 pkg | $22.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
10
Number of Pins
14
Base Style
Square
Package Quantity
1
Brand
DAYTON
Relay Socket Type
Elevator
Color Family
Gray
Shipping Weight
.1 lb.
Contact Form
4PDT
Socket Code
G
Contact Rating
10 A @ 300 VAC
Socket Style
Square
Depth
1 in.
Socket Type
Standard
Electrical Connection
Screw
Status Indicator
None
Height
1 in.
Terminals
Screw
Item
Relay Socket
Type
Square
Length
2-1/2 in.
Voltage
300 VAC
Mfr. Part Number
2A584
Width
1.19 in.
Mounting
DIN Rail/Surface
General
Base Style - Relay Socket
Square
Mounting - Relay
DIN Rail, Surface
Contact Form - Relay Socket
4PDT
Number of Pins - Relay
14
Contact Rating - Relay Socket
10A @ 300V AC
Socket Code - Relay
G
Depth - Relay Socket
2.5 in
Socket Type - Relay
Elevator
Electrical Connection - Relay Socket
Screw
Standards
E84694
Height - Relay Socket
1 in
Width - Relay Socket
1.19 in

Product Description

Relay Socket, Socket Type - Relay Elevator, Base Style - Relay Socket Square, Number of Pins - Relay 14, Contact Form - Relay Socket 4PDT, Contact Rating - Relay Socket 10A @ 300V AC, Mounting - Relay DIN Rail, Surface, Socket Code - Relay G, Electrical Connection - Relay Socket Screw, Height - Relay Socket 1.0 in, Width - Relay Socket 1.19 in, Depth - Relay Socket 2.5 in, Status Indicator None, Color Gray, Standards E84694
