POWER FIRST

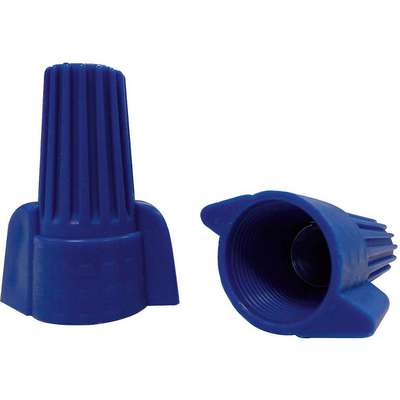

Power First Twist On Wire Connector, Blue, P17 Series, Max. Wire Combination: (2) 10 AWG with (1) 12 AWG

Hover over image to magnify
Wire Connector Wing ,Blue,PK25
Wire Connector Wing ,Blue,PK25

#913803-1 | Pkg Qty: 25

$9.48 pkg | $0.38 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Application
General Purpose
Mfr. Part Number
5UYH6
Brand
POWER FIRST
Minimum Single Wire Size
14 AWG
Color Family
Blue
Minimum Wire Combination
(2) 10 AWG
Description/Special Features
Quick and easy to match the right connector to the size of the wire. Shells are designed to withstand temperatures up to 221F (105C). Works well with solid or stranded wire.
Minimum Wire Size
14 AWG
Height
0.59 in.
Pack Quantity
25
Item
Twist On Wire Connector
Series
P17
Length
0.88 in.
Shipping Weight
.45 lb.
Maximum Single Wire Size
6 AWG
Width
1.26 in.
Maximum Voltage
600 VAC
Wire Connector Style
Wing
Maximum Wire Combination
(2) 10 AWG with (1) 12 AWG
Wire Type
Copper
Maximum Wire Size
6 AWG
General
Compatible Installation Tool Model Number
No. 6
RoHS Compliant
Yes
Compatible with Product Type
Light Fixtures & House Wiring
Special Features
Quick and easy to match the right connector to the size of the wire. Shells are designed to withstand temperatures up to 221F (105C). Works well with solid or stranded wire.
Contact Finish
Zinc
Standards
CSA Certified
For Conductor Material
Copper
Strip Length
7/8 in
For Wire Size
10 AWG, 12 AWG, 14 AWG, 6 AWG, 8 AWG
Twist-On Wire Size Ranges
14 AWG – 6 AWG
High Temperature Application
No
UL 94 Flammability Rating
V-2
Maximum Conductors
5

Product Description

Connectors fasten together two exposed wires so they do not come into contact with metal or other wire.
