KLEIN TOOLS

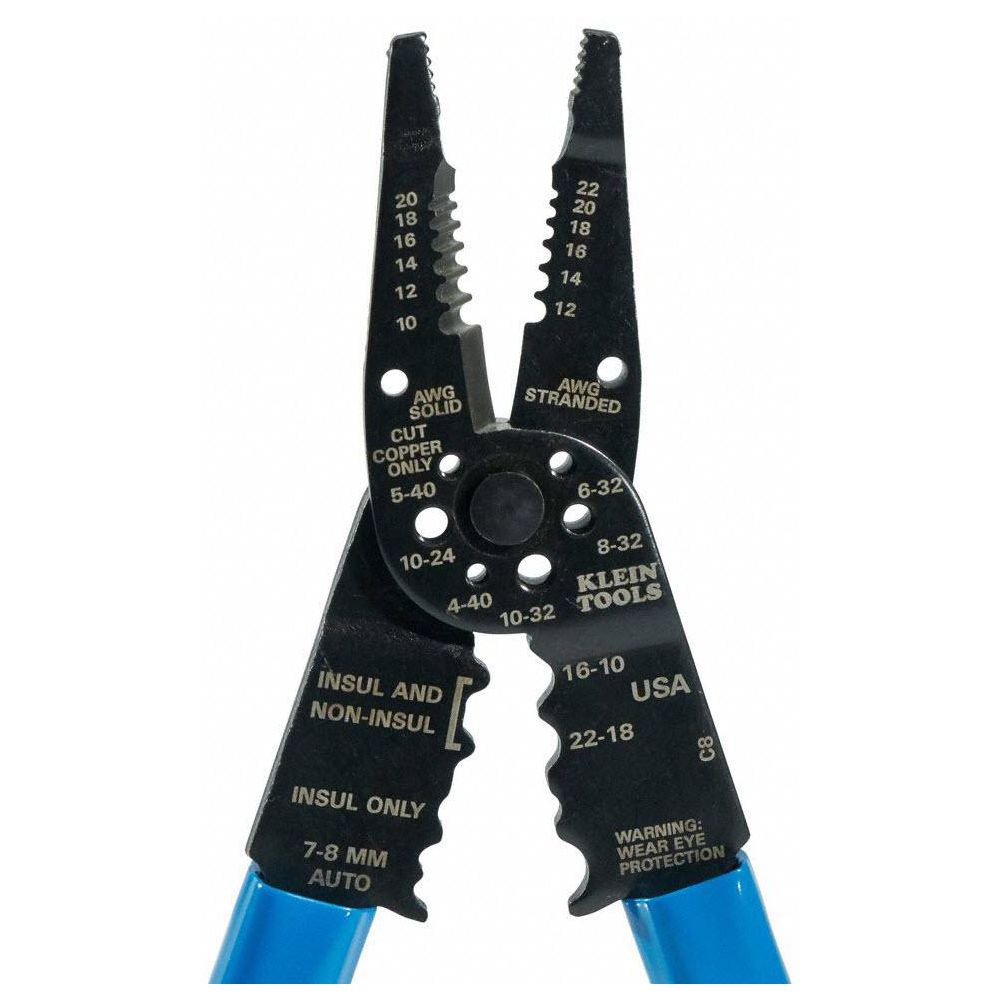

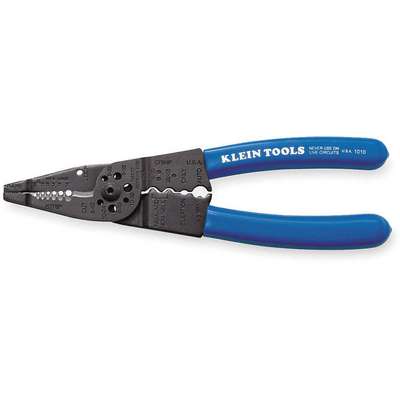

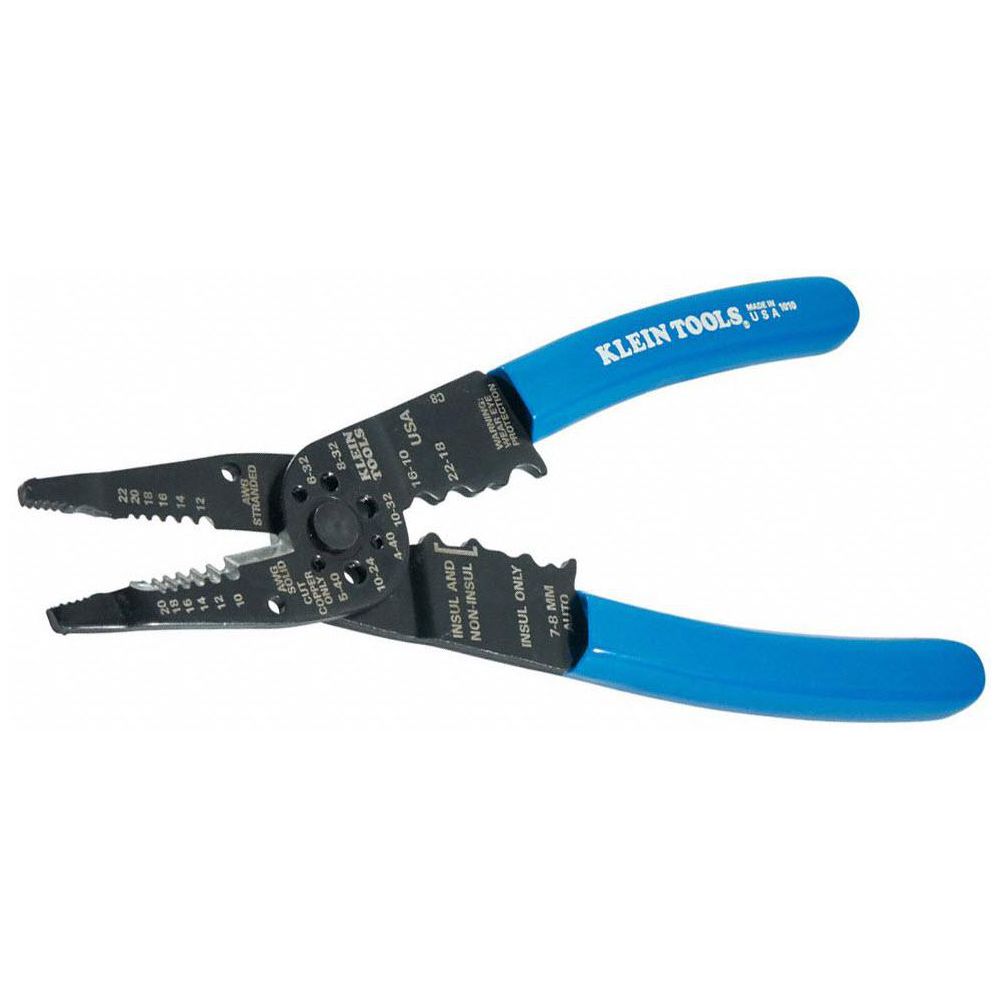

Klein Tools 8-1/4" Solid and Stranded Long Nose Wire Stripper/Crimper/Cutter/Looper, 22 to 10 AWG Capacity

Hover over image to magnify
Long Nose Combo Tool
PI_Asset_966116
PI_Asset_966117
PI_Asset_966118
Long Nose Combo Tool
PI_Asset_966116
PI_Asset_966117
PI_Asset_966118

#913771-7 | Pkg Qty: 1

$34.72 pkg | $34.72 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Adjustment Method
None
Maximum Stripping Capacity- Solid Wire
10 AWG
Brand
KLEIN TOOLS
Maximum Stripping Capacity- Standard Wire
12 AWG
Cable Type
Solid and Stranded
Mfr. Part Number
1010
Cutter Type
Wire Stripper
Minimum Stripping Capacity- Solid Wire
20 AWG
Function
Strip/Cut/Crimp/Loop
Minimum Stripping Capacity- Standard Wire
22 AWG
Handle Style
Standard
Overall Length
8-1/4 in.
Handle Type
Cushion Grip
Package Quantity
1
Insulated / Uninsulated
Insulated
Shipping Weight
.52 lb.
Item
Wire Stripper
Tether Capable
Standard Tool (Accessory Needed for Tethering)
Maximum Cable Diameter
12 ga
General
Connectors Crimped
Insulated Connectors, Noninsulated Connectors, Terminals
Minimum Stripping Capacity - Stranded Wire
22 AWG
Cutting Capacities
20 to 10 AWG (Solid), 22 to 12 AWG (Stranded)
Minimum Wire/Cable Diameter
20 ga
Features
Narrow, Serrated Plier Nose to Pull, Loop and Bend Wire, Long, Curved Cutting Blade
Nose Shape
Long
For Wire/Cable Type
Solid Wire, Stranded Wire
Stripping Capacity - Solid Wire
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG
Gauges Crimped
22 to 10 AWG
Stripping Capacity Range - Solid Wire
20 AWG to 10 AWG
Maximum Stripping Capacity - Solid Wire
10 AWG
Stripping Capacity Range - Stranded Wire
22 AWG to 12 AWG
Maximum Stripping Capacity - Stranded Wire
12 AWG
Stripping Capacity- Stranded Wire
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
Maximum Wire/Cable Diameter
12 ga
Tether Ready
No
Minimum Stripping Capacity - Solid Wire
20 AWG
Tool Functions
Crimp, Cut, Loop

Product Description

This long-nose multipurpose tool is built to handle a wide range of functions, from wire and bolt cutting, to stripping and crimping. The cutting and stripping holes are positioned in front of the pivot to easily fit into tight spaces. The tool also crimps insulated and noninsulated terminals, as well as and 7mm to 8mm ignition terminals. Plastic-covered, cushioned handles help to provide comfort and useability.
