SOUTHWIRE COMPANY

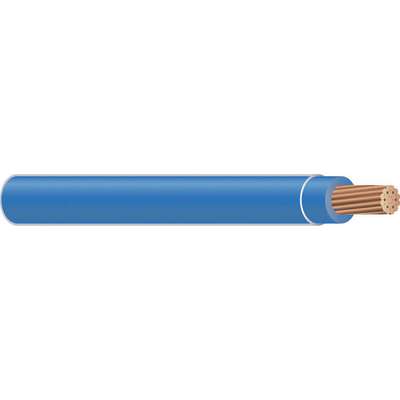

500 ft. Stranded Building Wire with TFFN Wire Type and 18 AWG Wire Size, Blue

Hover over image to magnify
Building Wire,Tffn,18/6,Blue,
PI_Asset_1354543
Building Wire,Tffn,18/6,Blue,
PI_Asset_1354543

#913756-8 | Pkg Qty: 1

$68.09 pkg | $68.09 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SOUTHWIRE COMPANY
Shipping Weight
2.81 lb.
Color Family
Blue
Spool Length
500 ft.
Insulation
PVC
Stranded / Solid
Stranded
Insulation Material
PVC
Stranding
16
Item
Fixture Wire
Temperature Rating
194deg. F
Jacket
Nylon
Type
Stranded
Jacket Color
Blue
Voltage
600VAC
Jacket Material
Nylon
Wire Color
Blue
Length
500 ft.
Wire Size
18 AWG
Maximum Amps
6
Wire and Cable Item
Building Wire
Mfr. Part Number
27024901
Wire/Cable Insulation Material
PVC
Nominal Outside Diameter
0.09 in.
Wire/Cable Jacket Material
Nylon
Number of Conductors
1
Wire/Cable Size
18 AWG
Package Quantity
1
Wire/Cable Type
TFFN
Packaging
Spool
General
Conductor Design
Stranded
Temp. Rating
194°F
Insulation Material - Wire and Cable
PVC
Trade Designation
TFFN
Jacket Material - Wire and Cable
Nylon
Wire Size - Wire and Cable
18 AWG
Standards
UL
Wire Type - Wire and Cable
TFFN

Product Description

Thermoplastic flexible nylon (TFFN) fixture wire is a coated wire typically run through raceways that is specifically designed for fixture wiring. It's primarily used in commercial applications to power hardwired light fixtures in ceilings and walls. It's more flexible than THHN building wire but less resistant to heat, and it is only available in limited gauges (18 and 16 AWG).

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.

Item Barcode
9137568
Building Wire,Tffn,18/6,Blue,
 NameItemDescription
Grainger DropshipGrainger Dropship5LWY6Building Wire,TFFN,18/
UNSPSC CODESUNSPSC CODES26121524
VMRS (ATA) CODESVMRS (ATA) CODES053-010-001Building Wire,TFFN,18/
