PROTO

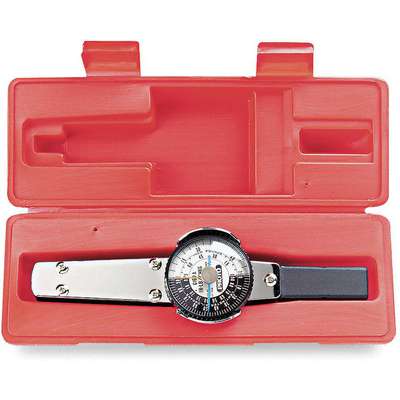

Proto Plain-Handle Dial Torque Wrench, 1/2" Drive Size, 5 ft.-lb. Primary Scale Increments, 21-1/2"

Hover over image to magnify
Dial Torque Wrench,250 Ft.-Lb.,
PI_Asset_1769554
Dial Torque Wrench,250 Ft.-Lb.,
PI_Asset_1769554
Proto Plain-Handle Dial Torque Wrench, 1/2" Drive Size, 5 ft.-lb. Primary Scale Increments, 21-1/2" Video

#913503-3 | Pkg Qty: 1

$362.47 pkg | $362.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accuracy
±4% CW/CCW @ 20 to 100% of Full Scale
Mfr. Part Number
J6125F
Brand
PROTO
Overall Length
21-1/2 in.
Calibration Certificate
No
Package Quantity
1
Corrosion Resistant
Yes
Rotation
Clockwise and Counterclockwise
Drive Size
1/2 in.
Secondary Scale Range
7 to 35 m-kg.
Handle Material
Rubber
Shipping Weight
4.37 lb.
Handle Type
Plain
Tether Capable
Tether Capable
Head Type
Standard
Torque Range
50 to 250 ft.-lb., 7 to 35 m-kg
Item
Dial Torque Wrench
Torque Type
Foot-Pound, Meter-Kilogram
General
Clockwise Accuracy
+/-4%
Primary Scale Range
50 to 250 ft-lb
Counterclockwise Accuracy
+/-4%
Secondary Scale Increments
1 m-kg
Extended Data Testing
Yes, NIST
Secondary Scale Maximum Torque
35 m-kg
Includes
(1) Blow Molded Box
Secondary Scale Minimum Torque
7 m-kg
Memory Needle
Yes
Standards
Federal GGG-W-00686C, ANSI B107.14M, EN26789, ISO 6789
Min. Number of Cycles
5500
Torque Adjustability
Adjustable
Primary Scale Increments
5 ft-lb
Torque Increments
1 m-kg, 5 ft-lb
Primary Scale Maximum Torque
250 ft-lb
Torque Measurement Type
Foot-Pound, Meter-Kilogram
Primary Scale Minimum Torque
50 ft-lb

Product Description

These standard-head dial torque wrenches have a design where accuracy is not affected by hand position. They have a nonmoving head and a memory pointer that indicates the maximum torque applied to the fastener. These wrenches can also identify the torque required to loosen tightened fasteners.
