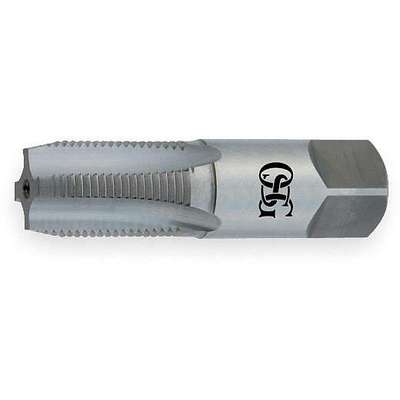

1/8"-27, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Oxide Tap Finish
Hover over image to magnify
#913495-2 | Pkg Qty: 1
$49.67 pkg | $49.67 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Shank Length
1-23/64 in. in.
Cutting Direction
Right
Shipping Weight
.06 lb.
Cutting Direction
Right Hand
Size
1/8 in.
Finish
Steam Oxide
Square Size
0.234 in.
Flutes
4
Subgroup | Tap
Pipe
Item
Pipe and Conduit Thread Tap
Tap Chamfer
Modified Bottom, Semi-Bottoming
List Number
109
Tap Dimension Type
Pipe
Material
High Speed Steel
Tap Finish
Black Oxide
Mfr. Part Number
1332701
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
1/8 in.
Number of Pieces
1
Tap Style
Pipe
Overall Length
2-7/64 in.
Tap Thread Size
1/8 in.-27
Pack Quantity
1
Tap Thread Type
NPSF
Pitch
27
Thread Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Length
3/4 in.
Series
109
Thread Type
NPSF
Shank Diameter
5/16 in.
Type
Plug
General
75% Thread Drill Size
Q
Shank Dia.
5/16 in
Application
For Tapping Pipe Threads
Standards
ANSI
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Extended Neck
Yes
Tap Length Standard
ANSI
Interrupted Thread
No
Tap Shank Standard
ANSI
Material Grade - Machining
109
Thread Standard
NPSF
Measurement System
Fractional Inch
Threads per Inch
27
Primary Material Application ISO Code
K, N, P
Product Description
Straight Pipe Taps
- For use with nonferrous metals
- For pipe or coupling tapping for low-pressure work with the use of a sealer. Suitable for NPSC and NPSM work.
