DAYTON

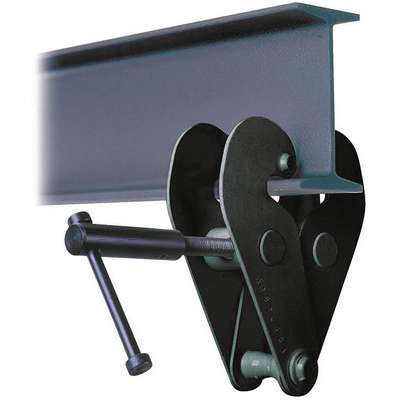

Dayton Beam Clamp, Vertical Lift, 10,000 lb Safe Working Load, 3-3/16" to 12-19/32" Jaw Capacity
Hover over image to magnify
#913448-6 | Pkg Qty: 1
$223.55 pkg | $223.55 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DAYTON
Operation
Vertical Lift
Item
Beam Clamp
Package Quantity
1
Jaw Material
Steel
Shipping Weight
26.24 lb.
Mfr. Part Number
4ZW25
General
Capacity (Tons)
5
Dimension F Max. (In.)
8.4
Dimension A (In.)
12.9
Dimension F Min. (In.)
6.4
Dimension B Max. (In.)
17.6
Dimension G (In.)
3.0 to 4.6
Dimension B Min. (In.)
9.3
Dimension H (In.)
1.10
Dimension C (In.)
4.4
Flange Width (In.)
3.6 to 12.2
Dimension D (In.)
0.4
Jaw Capacity
3-3/16 in to 12-19/32 in
Dimension E (In.)
10.1
Standards
ANSI/ASME B30.20
Product Description
Beam Clamps
- For commercial, construction, and industrial applications Adjustable to fit a wide range of beam sizes
- Provide a temporary or permanent mount to tapered or flat I-beams. In addition, they position the load beneath the center of the I-beam. Designed to reduce I-beam stress by applying the load inside of the flange edge. Include suspension bar.
- Comply with ASME standards.
Item Barcode
Beam Clamp,5 Tons
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4ZW25 | Beam Clamp,5 Tons |
 | UNSPSC CODES | 31162905 | |
 | VMRS (ATA) CODES | 053-008-004 | Beam Clamp,5 Tons |
